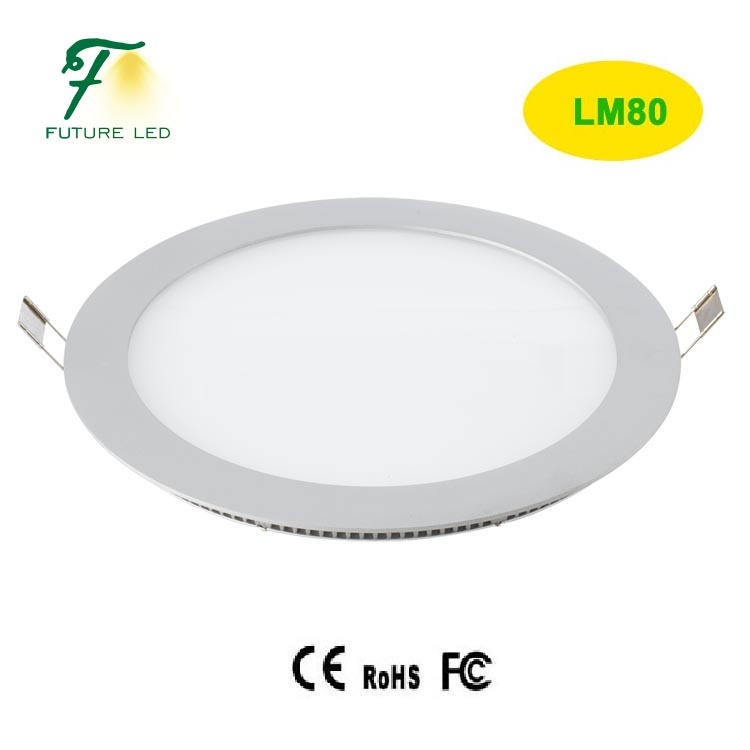

12W round slim led panel light
1. Low power consumption, high intensity, low lumen attenuation
2. Easy to install, high light transmittance
3. High efficiency and energy-saving compared to conventional
4. High resistance to shock and stress
Product specification:
| Model No | Size | Hole Size | Light Source Spec | LEDs | Input Voltage |
Driver | Power | PF | Color Temperature | Lumin | IP Degree | RA | CE/No CE |
| FT-SRP01-06 | Size:ø120*12mm | Open size: ø100 | 2835 | 30 | AC85-265 | External | 6W | PF≥0.5 | 2800-6500K | 360±50LM | IP20 | Ra≥70 | No CE |
| FT-SRP01-06A | Size:ø120*12mm | Open size: ø100 | 2835 | 30 | AC85-265 | External | 6W | PF≥0.5 | 2800-6500K | 360±50LM | IP20 | Ra≥80 | CE |
| FT-SRP01-09 | Size:Ø145*12mm | Open size: ø128 | 2835 | 45 | AC85-265 | External | 9W | PF≥0.5 | 2800-6500K | 630±50LM | IP20 | Ra≥70 | No CE |
| FT-SRP01-09A | Size:Ø145*12mm | Open size: ø128 | 2835 | 45 | AC85-265 | External | 9W | PF≥0.8 | 2800-6500K | 630±50LM | IP20 | Ra≥80 | CE |
| FT-SRP01-12 | Size:Ø170*12mm | Open size: Ø150 | 2835 | 60 | AC85-265 | External | 12W | PF≥0.5 | 2800-6500K | 840±50LM | IP20 | Ra≥70 | No CE |
| FT-SRP01-12A | Size:Ø170*12mm | Open size: Ø150 | 2835 | 60 | AC85-265 | External | 12W | PF≥0.8 | 2800-6500K | 840±50LM | IP20 | Ra≥80 | CE |
| FT-SRP01-18 | Size:Ø225*12mm | Open size: Ø200 | 2835 | 90 | AC85-265 | External | 18W | PF≥0.5 | 2800-6500K | 1260±100LM | IP20 | Ra≥70 | No CE |
| FT-SRP01-18A | Size:Ø225*12mm | Open size: Ø200 | 2835 | 90 | AC85-265 | External | 18W | PF≥0.8 | 2800-6500K | 1260±100LM | IP20 | Ra≥80 | CE |
| FT-SRP01-24 | Size:Ø240*12mm | Open size: Ø225 | 2835 | 120 | AC85-265 | External | 24W | PF≥0.5 | 2800-6500K | 1680±150LM | IP20 | Ra≥70 | No CE |
| FT-SRP01-24A | Size:Ø240*12mm | Open size: Ø225 | 2835 | 120 | AC85-265 | External | 24W | PF≥0.8 | 2800-6500K | 1680±150LM | IP20 | Ra≥80 | CE |
Application Area:
1 Hotels
2 Conference/Meeting rooms
3 Factories& Offices
4 Commercial Light
5 Residential /institution buildings
6 Schools , Colleges& Universities
7 Hospitals
8 Super Market
ISO9000 Certificate Factory
FAQ:
Q: Why Choose Feiyingte Lighting?
(1) Feiyingte Lighting have the engineer with more than 15years working experience, can ensure our new product with high quality but cheap price than others.
(2) Pipeline working line can ensure our delivery time.
(3) High Quality with quality report.
(4) Professinal sales team with more that 7years experience, will give a good service to all of the customers.
(5) Soonest reponse for the inquiry.
(6) 2 -4 years guarantee for products, best after-sales service
Q: Almost all LED tube light are the same exterior, how to tell quality?
A: Price and exterior.
Though LED lighting products are with same or similar exterior, due to raw material cost difference is big, poor quality are all poor housing exterior with short FINs and light weight. So prices are also low.
Besides, the driver exterior is also low-end with poor IC, MOS and capacitances.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED tubes, the CRI is mostly 70-75Ra, and 80Ra with higher cost. But there are some suppliers write a high data to attract clients, please note.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance. Higher PF and efficiency with higher cost.
Q: Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion, to find the best solution for you.
Shenzhen Feiyingte Lighting Co., Ltd., established on 2010, is a manufacturer of production, research and development, sales and service in one of the professional LED lighting products. In response to the national "energy saving" the call, the company is committed to energy-efficient lighting products R & D and innovation, combined with intelligent, has introduced a "more energy, more environmentally friendly, more green" lighting products, the main products include LED T8, T5 fluorescent lamps tube series, LED bulbs, LED Ceiling Lights, LED spotlight series, LED street light series, LED corn light series, LED mining lamp, LED ceiling lamp series, LED intelligent lighting and other products. Innovative products design aesthetics, advanced technology, high quality, using advanced COSTECH packaging technology, a breakthrough LED thermal bottleneck, increased luminous efficiency, the product has many features, such as high efficiency, high CRI, low energy consumption, Longer life, no radiation.
Our products got the cercificate of CE, RoHS, 3C, and produced based on ISO9001, Shenzhen Future Lighting Co., Ltd have a enormous basement on research and development and production, owned abundant professional knowledge and management experience, got a good reputation on LED industry.
We have a good and strong team who can offer R&D service, can solve your problems in time, can grow with you and win the markets for you, our main mission in this job is to make a win-win contract and a long term business relationship with our clients. Good Quality, exquisite & Sound Services and also competitive prices are our always object in all the business.
We are located in a place beside the main road to Shenzhen International Airport and the center of city, takes only 35 minutes by car from our company to the airport, easy and convenient for you to visit our factory.
Shenzhen Future Lighting Co., Ltd, looking forward to your visit.
