Home LED Light Products 12W LED Integrated Solar Garden Light

12W LED Integrated Solar Garden Light

12W LED Integrated Solar Garden Light
Price: US $ 120-170/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union

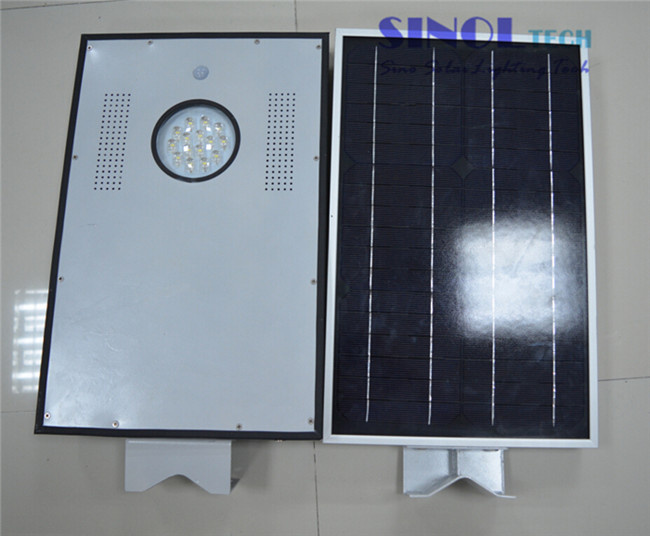

12W LED Integrated Solar garden light

12W LED 25W PV All in one Solar Garden Light SN-112 (Motion sensor)
Item No. SN-112
Size 480*440*50mm
Solar panel 25W, 410*340mm
LED brand 12W Bridgelux
Color temperature 6000-6500K
Lumen(LM) 1200-1280lm
Lithium Battery 10AH
Packing size/weight 550*400*150mm/7KG
Visual angle 120°
Install height 3-4m
Working temperature: -30~+60C
LED service life: 50000 hrs
Lithium battery and controller service life: Over 5 years
Warranty: 2 years

NEW! All in one solar garden/street light with higher PV power

Improvement comparing with SN-2 series:
1. For same LED power, solar panel power and battery capacity is higher, increasing both charging time and discharging time.
2. Switch material changed to stainless steel, other than previous plastic type, safer and longer service life.
3. The inter contact terminal among all components is changed to waterproof type, increase the waterproof feature, more delicate in workmanship, easier to ship and mount.

Main Feature:
Solar Panel: High efficiency monocrystal panel/sunpower
LED Lamp: 8W-60W high lumens, chip from USA
Battery Type: High capacity lithium battery
Controller: Intelligent lighting controller R&D
Work Temp: -30C~+60C
All in one intelligent design.
Long lighting time up to 36-48 hours.
Energy saving LED garden/street lights.
Different motion sensor with timer.
Pole optional, easy to install

This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service
Life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

Working principle:
The working principle of all in one solar light is the same with conventional solar light, the only difference is all components-solar panel, LED light, battery and control system are all integrated into one product, using lithium battery to make the whole product more light weight and easy installation.
Solar Panel Max Power 18V25W(High efficiency monocrystalline silicon)

 Life time 25 years
 Battery Type Lithium battery 10AH

 Life time 5 years
 LED Lamp Max power 12V12W
 (With sensor) Led chip brand Bridgelux

 Lumen(LM) 1200-1280LM

 Life time 50000hours

 Viewing angle 120 degree
 Charge time By sun 7-8 hours
 Discharge time Full power10 hours

 Half power 20 hours
 Working temp. range(C) -20C~+60C
 Color temp. range(k) 6000-6500k
 Mounting height range(m) 3-4m
 Space between light range(m) 8-10m
 Main lamp materials
 Aluminum alloy
 Warranty period
 2 years

Prod Model: SN-112
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Size: 480*440*50mm
Gross Weight: 7kg
Carton Size: 550*400*150mm
Install Height: 3-4m
Lumen(Lm): 1200-1280lm
Model No.: Sn-112
Product Name: 12W LED Integrated Solar Garden Light
LED Power: 12W
Solar Panel: 25W
Lithium Battery Capacity: 10ah
Power: 11W-15W
Light Type: Solar
Voltage: 12/24V
Charging Time (',H): 8
Usage: Street
Lamp Body Material: Aluminum Alloy
Color Temperature: Pure Wihte
IP Rating: IP65
Illumination Time: 8h
Certification: RoHS
Light Source: LED Lamp
With Light Source: With Light Source
Cell Type: Lithium Battery
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.

Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.

Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.

SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.

All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units

Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.

Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.

SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.

Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
