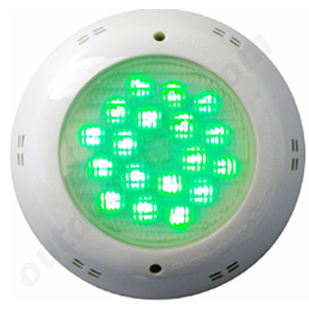

12V,IP68,18W LED surface mounted light, Surface Mounted Swimming Pool Light spec:
Specification | Parameters |
Model No. | LF-SPL-18*1W-F1 |
LED Qty | 18 pcs 1W High Power |
Input Voltage | AC/DC 12-13V |
Frequency | 50/60 Hz |
Power | 18±1w(RGB) 14±1w (R) 18±1w(G) 18±1w(B) 19±1w (white) |
Color Temperature | w.w.3000-3500K p.w.6000-7000K c.w.8000-10000K |
Luminous Flux | P.W. 1200Lm±10% W.W. 1100Lm±10% C.W. 1000 Lm±10% 400Lm±10%Lm (R) 750±10%Lm (G) 180±10%Lm (B) RGB: 430±10%Lm |
Color Rendering Index(CRI) | P.W.Ra≥70 |
Wave Length | R/G/B:620-630/515-525/ 460-470 nm |
Beam angle | 30°/45°/60° |
Dimension | 290*66mm |
Working temperature | 0~40ºC |
Storage Temperature | 0~50 ºC |
Constant driver | yes |
IP rating | IP68 |
12V,IP68,18W LED surface mounted light, Surface Mounted Swimming Pool Light Features:
1.IP68 Structure water proof ( private tooling & patented product), unique internal design, good at waterproof and anti-corrosion.
2.RGB synchronization with patented RGB controller
3.Size:
1) 290(diameter) * 66(height) mm
LF-SPL-18X3W-F1-(RGB 3 IN 1)/LF-SPL-18X1W-F1/LF-SPL-105S5-F1
LF-SPL-252D5-F1/LF-SPL-315D5-F1/ LF-SPL-20X1W-F1(SMD5730)
2) 250(diameter) * 47(height) mm
LF-SPL-12W (SMD5730)-F1 / LF-SPL-12W (SMD5050)-F1
HG-P56M-12W (SMD5730)-T1 / HG-P56M-12W (SMD5050)-T1
4.Thermal plastic body & pc cover, easy to install and excellent performance on heat dissipation.
5.Constant driver to make sure LED light working stably, avoid any flashing and noisy
6.Voltage:AC/DC 12V, Frequency: 50/60HZ
7.Color: Single color - white, red, green, blue, yellow
8.Color: RGB, 14 kinds of color changing
9.6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control,
External control, Remote & switch remote control, Automatic control
10.Beam angle:SMD5050/3528/5730-120°, high power-25°or 30°or 45°or 60°
12V,IP68,18W LED surface mounted light, Surface Mounted Swimming Pool Light
Dimension: 290mm * 66mm or 250mm *47mm
12V,IP68,18W LED surface mounted light, Surface Mounted Swimming Pool Light Installation Diagram
12V,IP68,18W LED surface mounted light, Surface Mounted Swimming Pool Light application:
