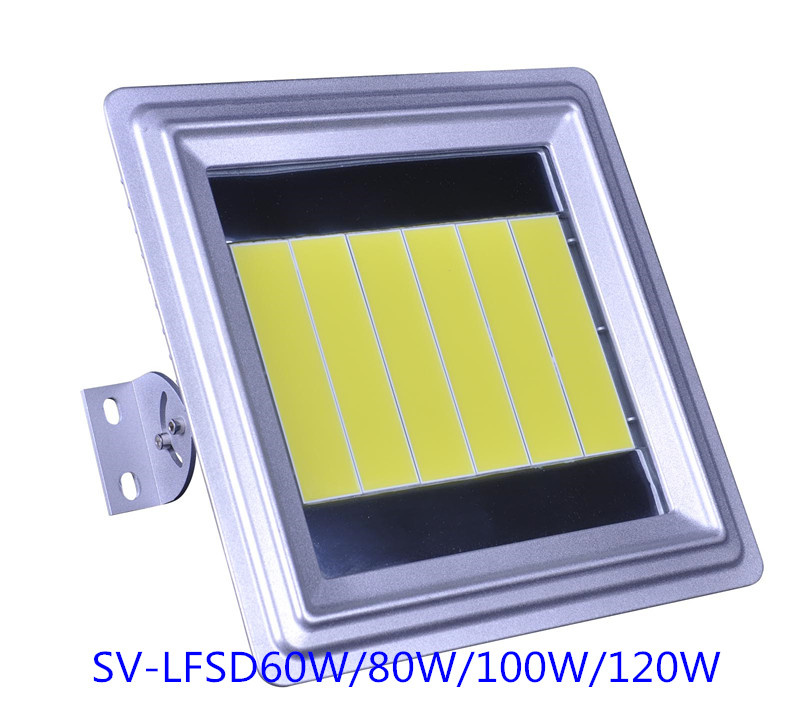

Model SV-LFD120W
Electrical characteristics Photometrics & Chromaticity
LED Qty 12pcs. ARE150 COB Luminous Flux 15000.0lm
LED Current 2500mA CCT 5000/6400K± 300K
Input Voltage&Hz AC90-277V, 50-60Hz CRI ≥ 70
Input Current ≤ 1.30A @110V 0.60A @220V Light distribution structure 120°
Power 120W± 10% Field Angle H154.4 V153.6
Power Factor ≥ 0.9 Lumen Maintenance >50, 000hours
Total harmonic distortion(THD) ≤ 20
Environmental characteristics Lamp specifications
Protection grade IP65 Overall Dimensions 556x290x115mm
Working temperature -40° C to +55° C Net weight 10.3kg
Working humidity 10-95%RH installation mode ceiling mounted
Storage temperature -40° C to +70° C
Storage Humidity 10-95%RH installation accessories 10KV Independent SPD (optional)
| tunnel light | 70W | 100W | 120W |
| LED Qty | 7pcs. ARE150 COB | 9pcs. ARE150 COB | 12pcs. ARE150 COB |
| LED Current | 1670mA | 1670mA | 2500mA |
| Luminous Flux | 8750.0lm | 11250.0lm | 15000.0lm |
| CCT | 5000K-6400K±300K/ | 5000K-6400K±300K/ | 5000K-6400K±300K/ |
| Input Current | ≤1.30A @110V | 0.366A @220V | ≤1.30A @110V | 0.476A @220V | ≤1.30A @110V | 0.60A @220V |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz |
| Net weight | 8.5kg | 8.7kg | 10.3kg |
| Overall Dimensions | 444x290x115mm | 444x290x115mm | 556x290x115mm |
LED outdoor tunnel light can meet the requirement of different tunnel, underground passage, gas station and other different fields. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site
Using COB plane light source,daintily and useful, low glare, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the LED light use value;
Suitable for application in: tunnel, underground passage, gas station, petroleum and chemical industry;
Product Characteristics:
1. Die casting aluminum alloy structure of lamp, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of led outdoor tunnel light;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Tempered glass surface cover, High transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. Equipped with two different types of mounting bracket, fixed stainless steel fittings, optional independent lightning protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of led outdoor tunnel light;
8. Through the China national explosion proof testing center certification and environmental certification standards, 5 years of product quality assurance;
