Model SV-LFD120W
Electrical characteristics
LED Qty 12pcs. ARE150 COB
LED Current 1670mA
Input Voltage&Hz AC90-264V, 50-60Hz
Input Current ≤1.30A @110V | ≤0.60A @220V
Power 120W±10%
Power Factor ≥0.9 (0.95 Typ.)
Total harmonic distortion(THD) ≤20
Photometrics & Chromaticity
Luminous Flux >15000lm
CCT 3000~6400K±300K
CRI ≥70
Light distribution structure 120°
Average Beam Angle 120 deg. (Typ.)
Lumen Maintenance >50,000hours3
Environmental characteristics
Protection grade IP65
Working temperature -40°C to +55°C
Working humidity 10-95%RH
Storage temperature -40°C to +70°
Storage Humidity 10-95%RH
Lamp specifications
Overall Dimensions 33.8X33.8X13.3cm
Net weight 5.8kg
Installation mode ceiling mounted
installation accessories 10KV Independent SPD (optional)
OPTIONS
| tunnel light | 70W | 100W | 120W |
| LED Qty | 7pcs. ARE150 COB | 9pcs. ARE150 COB | 12pcs. ARE150 COB |
| LED Current | 1670mA | 1670mA | 2500mA |
| Luminous Flux | 8750.0lm | 11250.0lm | 15000.0lm |
| CCT | 5000K-6400K±300K/ | 5000K-6400K±300K/ | 5000K-6400K±300K/ |
| Input Current | ≤1.30A @110V | 0.366A @220V | ≤1.30A @110V | 0.476A @220V | ≤1.30A @110V | 0.60A @220V |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz |
| Net weight | 8.5kg | 8.7kg | 10.3kg |
| Overall Dimensions | 444x290x115mm | 444x290x115mm | 556x290x115mm |

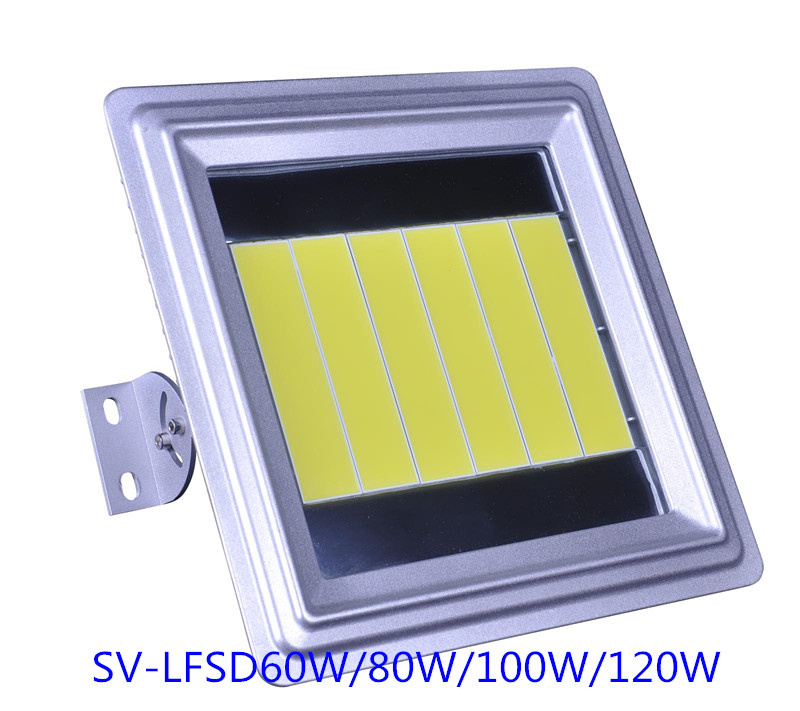

LED outdoor Ex-proof light can meet the requirement of different tunnel, underground passage, gas station and other different fields. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site
Using COB plane light source,daintily and useful, low glare, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the LED Ex-proof light use value;
Suitable for application in: tunnel, underground passage, gas station, petroleum and chemical industry;
Product Characteristics:
1. Die casting aluminum alloy structure of lamp, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of led outdoor Ex-proof light;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Tempered glass surface cover, High transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. Equipped with two different types of mounting bracket, fixed stainless steel fittings, optional independent lightning protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of led outdoor Ex-proof light;
8. Through the China national explosion proof testing center certification and environmental certification standards, 5 years of product quality assurance;
