Home LED Light Products 120W Bridgelux Chip High Quality LED Outdoor Light

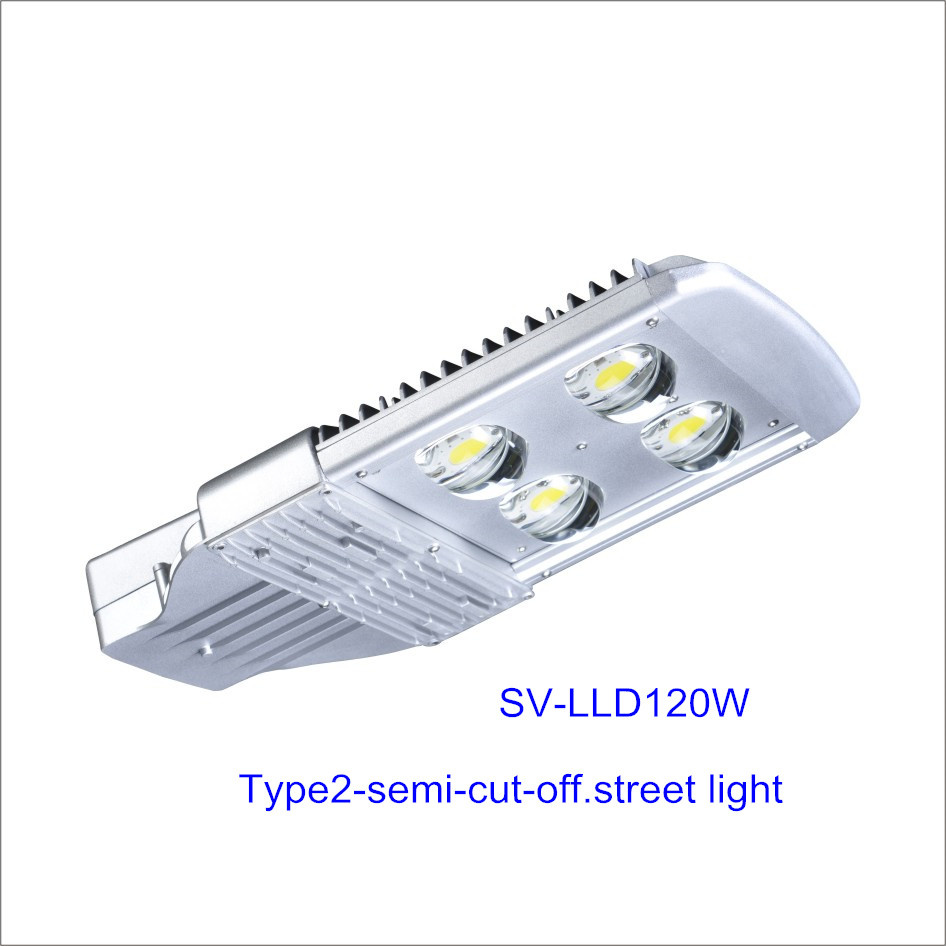

120W Bridgelux Chip High Quality LED Outdoor Light

120W Bridgelux Chip High Quality LED Outdoor Light
Price: US $ 50-200/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Model SV-LLD120W

Electrical Characteristics                                                        Photometrics & Chromaticity
No. Of LED 4pcs. Bridgelux® Vero 18                                   Total Rated Lamp Lumens 17040lm
LED Current 1050mA                                                             CCT 5000K± 300K
Input Voltage & Frequency AC90-305V, 50-60Hz                 CRI ≥ 70
AC Input Current ≤ 1.30A @110V ≤ 0.615A @220V
System Power 120W± 10%                                                   Field Angle H155.5 V122.9
Power Factor ≥ 0.9 (0.95 )                                                     Lumen Maintenance >50, 000hours
% THD ≤ 20

Environmental Characteristics                                               Mechanical Characteristics
IP Rating IP66                                                                       Overall Dimensions 585mm x 346mm x 107mm
Operating Temperature -40° C to +55° C                              Weight 9.3 kg
Operating Humidity 10-95%RH                                              Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40° C to +70° C                                  10KV independent Thunder-proof component(Optional)
Storage Humidity 10-95%RH


OPTIONS
model120W150W180W240W
LED chipBridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18
Lamp Lumens17040lm22200lm25560lm34800lm
Input Voltage & FrequencyAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60Hz
CCT5000K±300K5000K±300K5000K±300K5000K±300K
System Power120W±10%150W±10%180W±10%240W±10%
Power Factor≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )
Operating Temperature-40°C to +55°C-40°C to +55°C-40°C to +55°C-40°C to +55°C
Weight9.3 kg12.3 kg12.3 kg14.6 kg
Overall Dimensions585mm x 346mm x 107mm728mm x 346mm x 107mm728mm x 346mm x 107mm890mm x 400mm x 180mm




According with North America, Europe, Asia, China and other city outdoor light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of outdoor light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend outdoor light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;


3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
Prod Model: SV-LLD120W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Overall Dimensions: 585mm X 346mm X 107mm
Operating Temperature: -40°c to +55°c
Total Rated Lamp Lumens: 17040lm
Power Factor: ≥ 0.9 (0.95 )
Power Supply: AC
Color Temperature: Warm White
Lamp Body Material: Aluminum Alloy
Application: Freeway,Expressway,Major Roadway.
IP Rating: IP65
Certification: UL
With Light Source: With Light Source
LED Chips Brand: Bridgelux
Power: 120W
Input Voltage: AC90-305V, 50-60Hz
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.

The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.

You are welcome to contact us for more information.

Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
