Home LED Light Products 120W Aluminum Alloy LED Tunnel Light with Energy Saving

120W Aluminum Alloy LED Tunnel Light with Energy Saving

120W Aluminum Alloy LED Tunnel Light with Energy Saving
Price: US $ 154-173/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

120W Aluminum Alloy LED Tunnel Light with Energy Saving

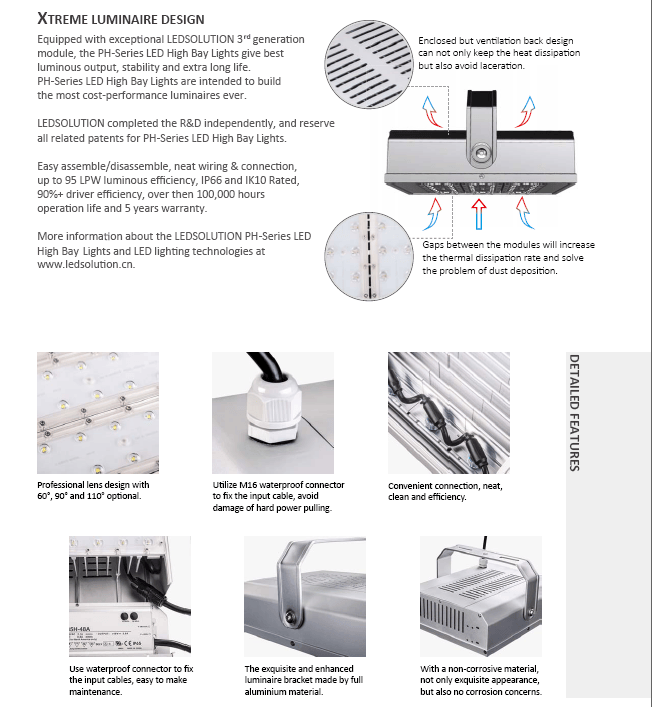

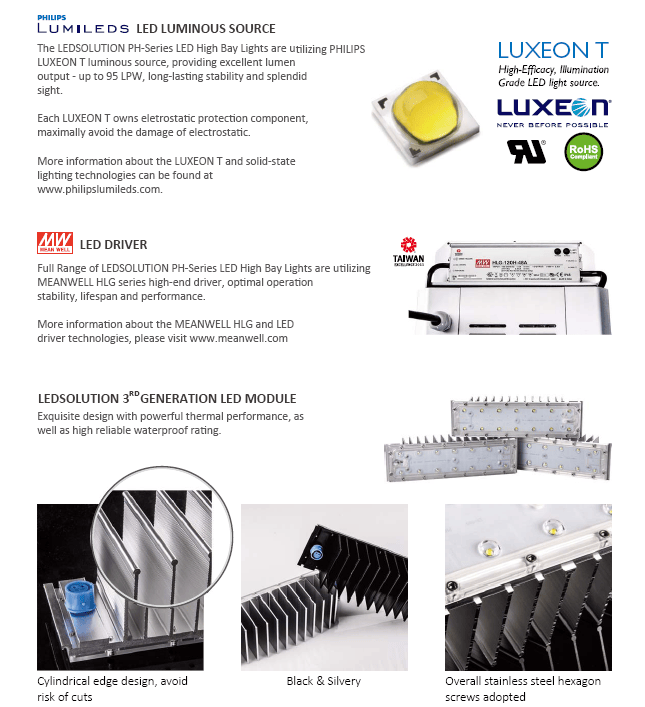

1.Professional encapsulation with PHILIPS LUEON® LED chip makes the LED light source.
2.Obtaining excellent protection of optical attenuation and heat conduction ratio.
3.Utilizing World's leading MEAN WELL® LED Driver, Great luminaire stability, lifespan & Optimal Performance Status.
4.Use of the good thermal grease combining MCPCB and aluminium radiator closely,
5.Keeps every LEDs obtaining optimal effects Of heat dissipation.
6.Light attenuation of LEDs under safe control With adequate heat sinking area and Excellent air flow design.
7.Designed the rectangular light beam from exquisite lens, effectively control the horizontal and vertical Beam angle. Mirror surface processed reflector could collect the invalid light and reflect them into Effective.

8.The design of traditional concept coupled LEDs technical, makes it more easily for accept by people For general flood lighting replacement.

Energy savings, high efficiency Easy to maintenance, with big upgrade spaces and High brightness LED.

 Warehouse lighting,factory lighting,rink lighting,gas station lighting.Parking lots.Shops, Billboards, Buildings, Landscapes.

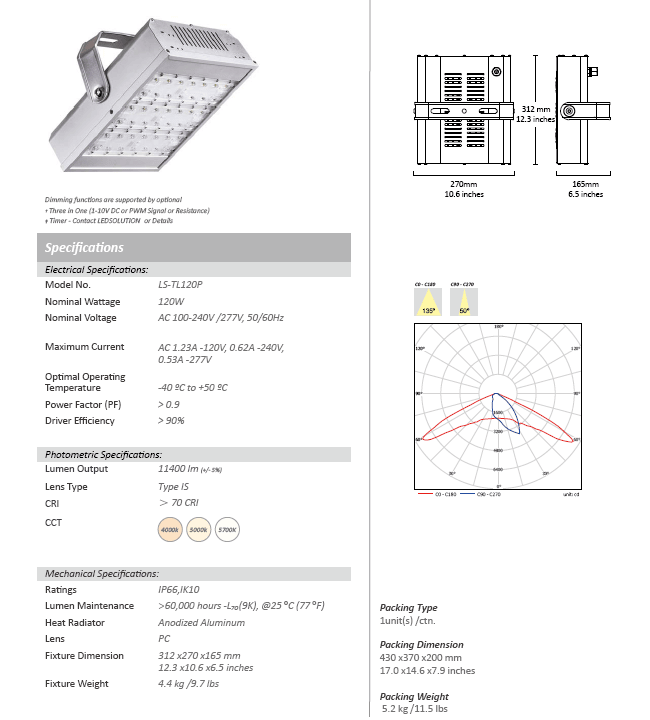

LS-TL120P (250W HID Replacement)

Product Benefits
Product Benefits





LED Brand


Driver Brand

Meanwell Driver

Norminal Wattage


LED  Quantity


Input Voltage

AC 100-240V /277V, 50/60Hz

Power Efficiency


Power Factor


Lamp Rated Luminous Efficiency


Lamp Rated Lumen output

12000 lm (Lumen tolerance +/- 5%)

Color Rendering Index


Color Temperature

4000 or 5000 or 5700K

Photometric Type

Type I Short

Optimal Operating Temperature


Storage Temperatures


Working Environment

Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion

< 10%

Lumen Maintenance

>60,000 hours -L70(9K), @25 ºC (77 ºF)

Body and Shell Materials

Anodized Aluminum

IP Rating

IP66 &IK10



Optional Function

1-10V DC or PWM Signal or Resistance Dimming


Timer/Photocell Control


5 years


Packing Details

Fixture Dimension

312 x270 x165 mm

Fixture Weight

4.4 kg /9.7 lbs

Packing Dimension

430 x370 x200 mm

Packing Weight

5.2 kg /11.5 lbs

Welcome your inquiry!
Prod Model: LS-TL120P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Current: AC 0.41A-120V, 0.21A-240V,
Power Factor (PF): > 0.90
Lens: PC
Working Temperature: -40 - +50
Driver Efficiency: > 90%
LED Driver: Mean Well
Operating Humidity: 10% to 90%
Heat Radiator: Anodized Aluminum
Input Voltage(V): 100-240V/277V/347V/480V
CRI (Ra>): 70
Lamp Body Material: Aluminum Alloy
IP Rating: IP66
Lifespan: >50000 hours
Warranty: 5 Years
Certification: VDE
With Light Source: With Light Source
Color Temperature: 2800-6500k
Housing Color: Silver
Voltage: AC: 100-240V
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
