Home LED Light Products 1200X600 Flat LED Panel Light 72W

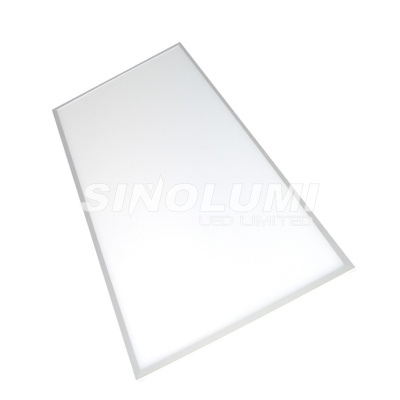

1200X600 Flat LED Panel Light 72W

1200X600 Flat LED Panel Light 72W
Price: US $ 70-80/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Description:
Slim LED Panel Lights are one of the most popular LED lighting fixtures which could replace traditional fluorescent grid lights. They are Using advanced oxidation treatment technology make the light frame looks more beautiful and stylish. The frame is made of 6063 anodic oxidation aluminum. With high thermal conductive aluminum frame connect closely with aluminum PCB plate, it could ensure the heat could dissipate out fast and temperature of light surface below 45 centi degree. No heat buildup inside.
Features:
Ultra slim and fashionable design with superior light guide panel,natural soft light, anti-glare.
Special circuit design, single broken LED won't affect other LEDs.
Constant current design, low heat, highly stable performance, with external driver, you could replace driver easily if there are any problems with driver.New high efficiency driver with heat protection system which ensures it could work under unstable voltage.
Energy saving, it could save 10 times energy more than that of incandescent fixtures, Save 2 times of CFL luminaries at same illumination.
The brightness or color can be dimmable with remote controller or 1~10V dimmer. (optional)
Available in various sizes. Different size could be customized for volume order.
CE & ROHS approved, with 2 years warranty.UL approved driver is optional.
Specifications:




Order Information:

Model No.
LED ColorVoltagePowerLumenAngelCRI
SL-MDF1200x600WW360A4
Epistar
SMD2835

Warm white
2800~3200KAC100-240V72W4000lm120 degrees>80
SL-MDF1200x600NW360A4Natural white3800~4200K4500lm
SL-MDF1200x600W360A4white5800~6200K4800lm



Package Information:
Absolute Maximum Rating:

2Pcs/Carton
Carton Size: 1348*680*145mm
N.W: 14Kg G.W:19Kg

Aluminum Heat Sink Temperature: 53°C
Operating Temperature: -20~+40 °C
Storage Temperature: -20~+50 °C
Equilibrium Temperature: 58 °C


LED Panel Lights Features:



Applications:
Sinolumi LED Light panels are designed to replace the traditional grid lights and fluorescent tubes. It is widely used as general and decoration lighting, always equipped in offices, restaurants, conference rooms, factories, hotels, subway stations, commercial complexes, residential buildings, institution buildings, schools, colleges, hospitals, hallways and lobbies.


Installations:

Prod Model: SL-MDF1200x600NW360A4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1195*595*11mm
Power: 72W
LED Brand: Epistar SMD2835
Luminous Flux: 4000-4800lm
CRI: >80
Power Facotr: >0.9
Light Source: LED
Type: Flat-Type
Certification: VDE
Voltage: 100-240V
Dimmable: With Dimmable
Appearance: Rectangle
Emitting Color: White/Warm White/White
Housing Material: Aluminum
Beam Angle: 120
Sinolumi LED Limited, is a high-tech enterprise specializing in researching, developing and manufacturing LED spotlight, LED bulb, LED downlight, LED panel light, LED tube light, LED pool light, LED wall washer, LED pool light, LED flood light, and son on LED illuminations. With more than five years LED lighting manufacturing experience, we own more than four series products as LED home lightings, LED indoor lightings, LED decorative lightings and LED lamps. The products are extensively applied to as light source, indoor illumination and decoration in home, shop, exhibition, advertisement, hotel, disco and bar, outdoor decorations in park, square, bridge, building outline, city night view engineering.

We have an excellent and professional teamwork, modern production lines, advanced crafts & equipments, and introduced ISO9001: 2000quality Managing system, which provided enough guarantee on resource and quality for the rapid growing and strengthening. Now our products are well Sold in Europe, America, and Asia market with more extensive popularity in domestic market. Taking "concentrate on creating the first LED Illuminations brand in China"as goal, your joining and cooperation is welcome!
