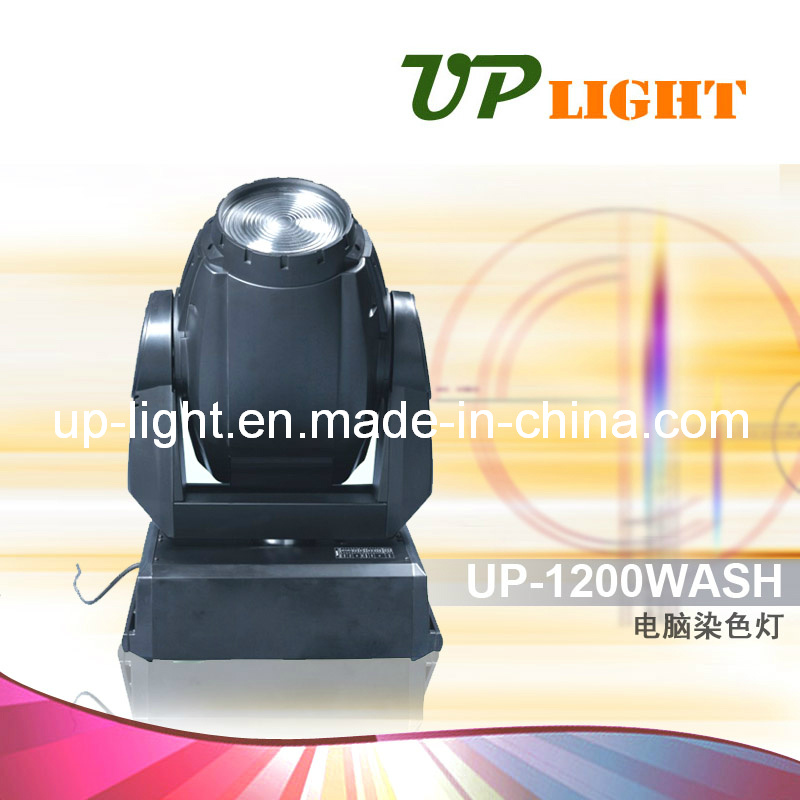

Moving Head Wash Light 1200W
UP-MH 1200W wash
Specification:
Model: UP-MH 1200W wash
Lamp: HMI 1200W/2
16 DMX control panel
Display: Liquid-crystal display in English or Chinese
Color temperature: 5600k
Color wheel: Wheel with 3 inner color filters plus white and rainbow effect
Three primary color
CMY stepless color system
Automatic Pan and Tilt repositioning by photoelectric repositioning system if accidentally knocked out of place.
Electric linear focusing
Mechanical dimmer with strobe as 1-10 flash per second
Rotation: 450° Pan 270° Tilt
Channel: DMX 16CH
Voltage: AC220~240V 50/60Hz
Power: 1500W
N. W.: 51KG
Dimension: 780*570*420mm
Overheat protection
Material: Aluminum and heat resistance plastic.
Up to CE standard and GB7000.15-2000 standard
|
Channel |
Function |
|
CH1 |
Strobe |
|
CH2 |
Dimmer |
|
CH3 |
Pan |
|
CH4 |
Tilt |
|
CH5 |
Pan fine |
|
CH6 |
Tilt fine |
|
CH7 |
Pan/tilt speed |
|
CH8 |
K |
|
CH9 |
Zoom |
|
CH10 |
Color box |
|
CH11 |
o |
|
CH12 |
M |
|
CH13 |
Y |
|
CH14 |
CMY color |
|
CH15 |
CMY speed |
|
CH16 |
Reset |
