1200 Moving Head Spot Light

1200 Moving Head Spot Light
Price: Negotiable/Set
Trade Terms: FOB,EXW,others
Min Order: 4/Set
Pay Type: T/T,Western Union,Paypal

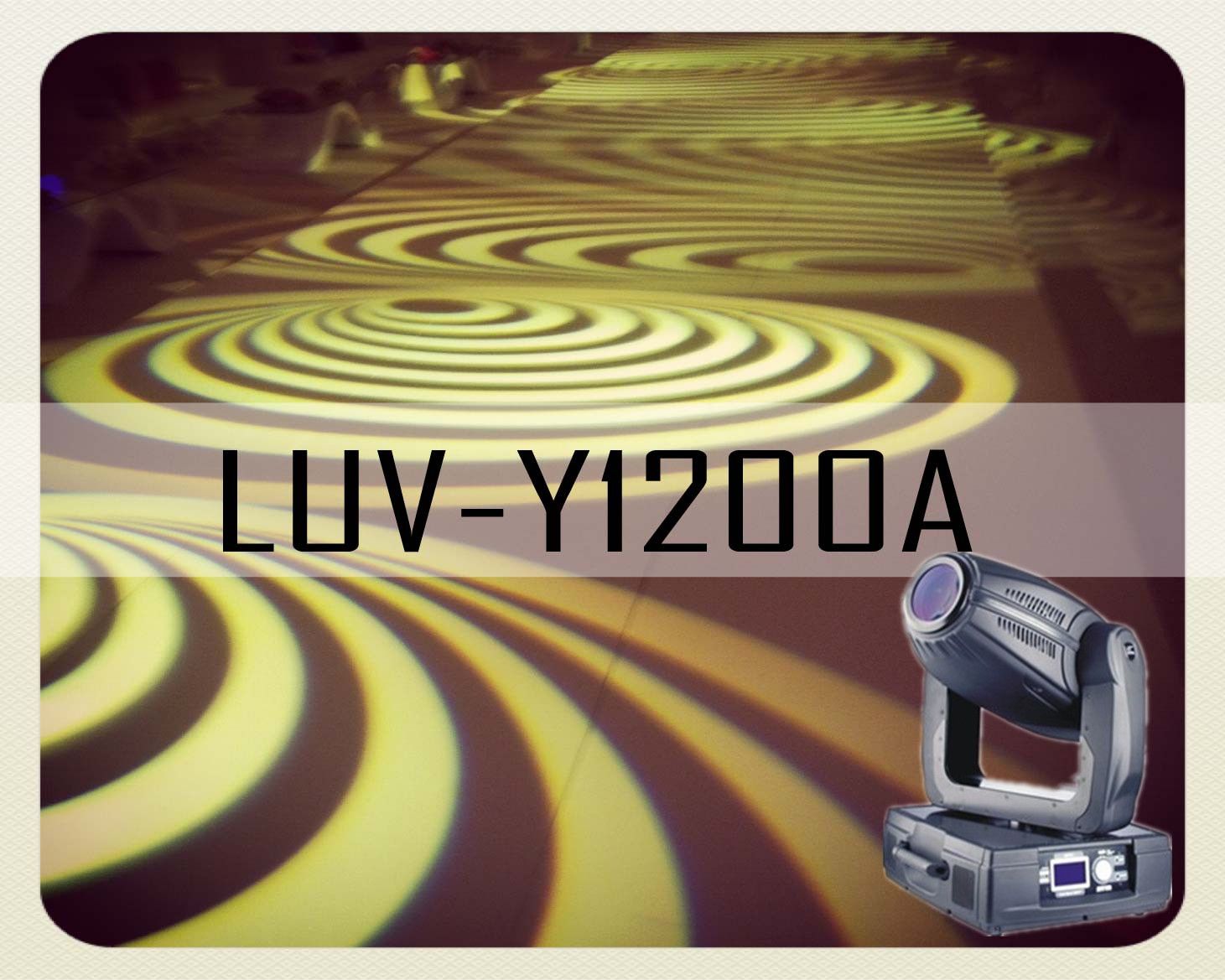

Moving head/Stage Lighting-stage light- Moving head/Moving Head Light/ 32CH Robe colorspot Moving Head Light 1200 Spot (LUV-Y1200A)


Features:
1. Italy CMYK Promise blending system, Promise enlarge system;
2. Original 32 national Channels and Gobo;
3. Special high temperature resistant electrical Teflon wire.
4. Double 600W ballast design for save power as electronic ballast.
5. Philips 1200W lamp. 5. Professional flightcase package

Source
Lamp: 1200W short arc discharge
Base: G-22
Approved model: Philips MSR 1200 SA
Wiring options: 208/230/250V, 50Hz; 208/230V, 60Hz
Power consumption: 1500W at 220V/50Hz

Mechanical Specification
Height: 1070 mm (head in horizontal position)
Width: 620 mm
Depth: 680 mm
Net weight: 50kg
Gross weight: 80 kg ( with flycase )
Thermal
Maximum ambient temperature (Ta): 40° C (104° )
Maximum surface temperature: 135° C (275° F)

Gobos
Outside diameter: 37, 5 +0/-0, 25mm
Image diameter: 31, 5mm
Thickness: 1, 1mm up to 6mm in rotating slots
Material: High-temperature Borofloat glass
Prisms and Effects
Outside diameter: 47 +0/-0, 3 mm
Thickness: Up to 5mm in rotating slots (up to 8mm in the center) Control and

Programming
Protocol: USITT DMX-512
Control channels: 24 or 32
Display: Blue/white LCD graphic
Pan/Tilt resolution: 8- or 16-bit
Gobo indexing: 8- or 16-bit
Prism indexing: 8- or 16-bit
Data in/out: Locking 3-pin & 5-pin XLR
Electromechanical Effects
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
CTO: 0 - 100%

Color wheel: 6 replaceable 'SLOT&LOCK' colors + open Gobo wheel 1: 6 rotating, inflexable, replaceable 'SLOT&LOCK' Gobo wheel 2: 6 rotating, indexable, replaceable 'SLOT&LOCK' Gobo dimension: Gobo size: 37.3mm picture size: 31.5mm
Iris: Motorized, stepless
Effect wheel: 4 rotating, indexable, replaceable 'SLOT&LOCK'
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobo effect
Focus: 2m - infinity
Zoom: 13° - 42°
Pan: 530°
Tilt: 280°
Rigging
Mounting points: 8 pairs of 1/4-turn locks
Fixation option: Pan/Tilt-lock mechanism

CH1 PAN
CH2 PAN 16BIT
CH3 TILT
CH4 TILT 16BIT
CH5 PAN/TILT SPEED
CH6 SPECIAL FUNCTION
CH7 PAN/TILT MACRO FUNCTION
CH8 PAN/TILT MACRO SPEED
CH9 COLOR WHEEL
CH11 MAGENTA
CH12 YELLOW
CH13 CTC
CH14 CMY MACRO
CH15 EFFECT SPEED
CH16 EFFECT SPEED ASSIGNING
CH17 GOBO 1
CH18 GOBO 1 ROTATION
CH19 GOBO 16BIT
CH20 GOBO 2
CH21 GOBO 2 ROTATION
CH22 GOBO 16 BIT
CH23 PRISM
CH24 PRISM ROTATION
CH25 PRISM 16BIT
CH26 FROST
CH27 IRIS
CH28 ZOOM
CH29 FOCUS
CH30 STROBE
CH31 DIMMER
CH32 DIMMER 16Bit

Application: Disco bar, KTV room, pub, family party

Trade Terms:
1. Payment: T/T in advance, paypal, western union is welcomed.
2. Delivered in 10-15days

Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Monthly output over 1, 000PCS
Prod Model: LUV-Y1200A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp: for Philips Msr 1200W SA
Power Consumption: 1500W
Power: 220V/50Hz
DMX Control: Original 32CH
G. W: 80kg
Size: 107X62X68cm
Certificate: CE & RoHS
Model: Luv-Y1200A
Effect: Color Spot
Item: 1200 Moving Head Spot Light
IP Rating: IP20
Strobe: Adjustable Speed Strobe
Control Mode: Dmx Signal Control
Certification: RoHS
Light Source: Gas Discharge Bulb
Control Channel: 32CH
Voltage: 220V
