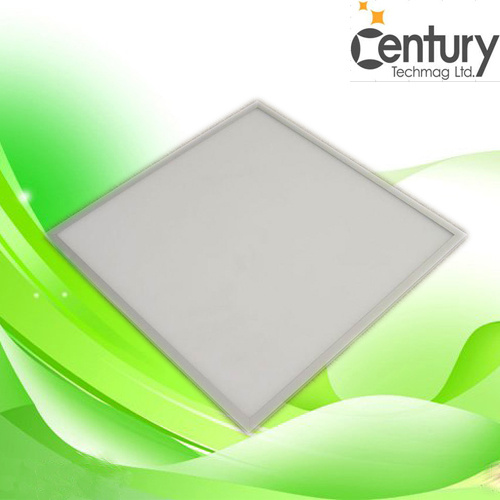

1200*300 LED Panel, 2700k LED Panel Light

1200*300 Led Panel,2700k Led Panel Light



Why Choose us!We are your best partner

1.Higher lumen Chips,Power supplier,Customize your product,So easy!

2.Fast responce to your inquiry and feedback!

3.Good quality material makes good quality led panel light

4.Strict quality controller system and testing led panel light before shipment

5.Free!!For all of cost of replacing our panel light and parts.

6.Different controller system by your choice.

Model		P66-24S		P66-30S		P66-36S		P66-48S
Power Consumed		24w		30w		36w		48w
Luminance Flux(lm)		2112Lm		2640Lm		3240Lm		4320Lm
LED Quantity		120pcs		150pcs		180pcs		240pcs
Emitter		SMD4014		SMD4014		SMD4014		SMD4014
LED Brand		EPISTAR		EPISTAR		EPISTAR		EPISTAR/EPILEDS
Lens Beam Angle		120°
Input Voltage		AC110v-240v
Power Efficiency		80lm/w
Power Factor		>0.90
Color temperature		Warmwhite(2700-3300K)/Naturewhite(4000-4500K)/Purewhite(5500-6500K)/R/G/B/Y
Color rendering index		Ra≥0.75(5500-6500K)(High CRI upto 85 by request)
Enviroment Tempreature		-20°C to 50°C (-40°C to 50 °C are availalbe)
Certificates		CE & RoHS Approved(other certificate on request)
Dimmable		Pending request(Triac dimmer/RF/IR with remote controller)
LED Life Span		50,000 Hours
Warranty		2 Years
Dimension(mm)		600*300		600*300		600*300		1200*300*14
Weight(kg)		3.5KG		3.5KG		3.5KG		9KG

Advantage of our led panel light:


1. Super Stable led panel light:Long time burning before shipping.

2. High-quality service:2 years warranty,7*24 Hotline&E-Mail Technical support

3. The Best Quality led panel light:Only using well-known brand led chip,Long-term stable suppliers to ensure that the raw material quality

4. Ultra energy efficient: 1W LED =2W Fluoerecent= 10W Incandescent

5. Long lifetime: 50000 hours led life span, 10 times to Fluoerecent,50 times to Incandescent

6. Environment and health protection: No UV &IR light, No Mercury, No flash, visual comfort

7. Solid-state light source:Distant range transport safety

Specification
Product Name	48W led panel light
Product Model	P66-48S
Housing Material	Aluminium+PMMA
Power Consumed	48W
Power Factor	≥0.85
LED Type	240pcs SMD4014 leds
LED Brand	Epistar
Luminous flux	4320LM
Beam Angle	≥160 degree
Dimmable/RGB	Customer Request
Input Voltage	AC110V/220V
Color Temperature	2700-3300K(ww), 5500~6500K(pw), 6500~7000K(cw)
Color Rendering Index	≥80Ra
Certificates	CE/RoHS or Pending request
Size	600mm*600mm*12mm
Private Logo	Pending request
LED Life Span	50,000 hours
Packging	1pcs with white box,10pcs/carton
Weight	6000g

Customized your LED panel light:


1. Different led chip brand:Epistar/CREE

2. Dimmable are available,compatible most dimmer,RF remote prepared

3. Isolated power supplier and non-isolated power could be chosen.

4. Regular lumen 100-120lm/w,Highest lumen 120-140lm/w for chosen.

5. Different power supplier solution:lowest temperature upto -40 degree.it could be updated to Meanwell power supplier.

6. Long life span,20000/50000 hours,2-5 years warranty by your request.



Trade Terms:

1. Payment: T/T , 30% deposits before production, 70% balance to be paid before dleiverying

2. Production lead time for 100~500pcs: 7days, 500~1000pcs:14days

3. Sample can below 5 pcs

4. Shipping freight are quoted under your requests

5. Shipping port: Shenzhen, Mainland China

6 .Discounts are offered based on order quantities


Our service:


1.7day*24hours Hotline & Email Service

2.Your inquiry related to our products or prices will be replied in 12hrs.

3.Well-trained and experienced staffs to answer all your inquires in your language.

4.OEM&ODM, any your customized lightings we can help you to design and put into product.

5.Distributoership are offered for your unique design and some our current models
Installation guide:



Delivery


        a)       Sample delivery time: About 3 days for standard model and 8-9 days for OEM production or customer's designs.

       b)       Less than 500 pcs: 13-15 working days.

       c)        Between 500 pcs and 1000 pcs: 23-25 working days.

       d)        More than 1000 pcs: 30-32 working days.



Shipping terms:

1) Available for shipping to all over the world, including North/South America, Europe, Singapore, Hong Kong, etc.

2) After delivery, our service will send Tracking No. to check the shipping information in 24 hours.

3) FedEx, DHL, UPS, TNT or as customers' requests

4) Air & Sea shipment



Payment Terms:


T/T, Western Union, MoneyGram,PayPal;

30% deposits and 70% balance before delivery.


RFQ:


1. What are your market reach throughout the region?

Our markets around the world in every corner, we have many years of
experience in foreign trade, our customer base has, we have worked with us in every country buyers, producers and distributors.


2. What is your main product line is made?

Led Commercial light(indoor or outdoor led light)


3. Your factory or trading company?

We are a factory, we provide OEM services. Some famous foreign supermarkets and
we often collaborate.


4. You have the ability to do independent research and development?

Our engineering department has 4-5 people, we have the research and development capabilities.
We also collect regularly each customer feedback,
product improvement and new product development. We also hold monthly new product launches.


5. If I have a question I would like advice on how to contact you?

You can sns platform or directly through major inquiry and send e-mail to consult us.
 Look for our above name card.


6. What will you provide services?

If you do not mind, you can tell us the following information, you are factories,
wholesalers, purchasing, dealers,
consumers or do engineering, design, or home. We can provide a detailed explanation to you.
You will also patiently
answered every question. We have established a customer complaint side, if you are not satisfied with our service,
you can directly tell us via e-mail or telephone. We answer all questions for you.
If you need, we can help you to find
and export other goods.
Thank you !
