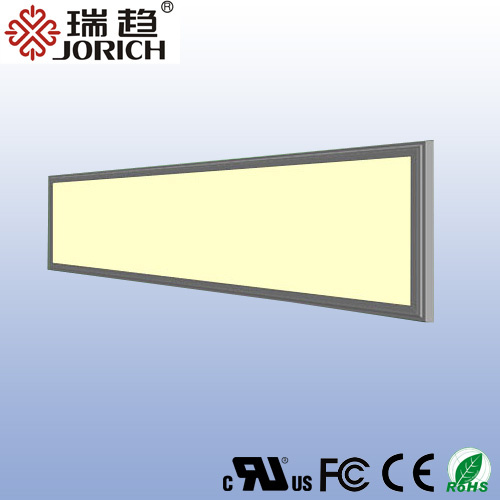

Smart LED Panel lamps 120*30 72W-SMD2835
Quik Info:
1, LEDs imports from First class Taiwan LumenMax
2, PLCC-2 Packing Tech better head sink performance
3, PCB is tightly stuck to AL frame, good heat dissipation
4, External UL driver with 3PCS capitance(5000hours at 105 degree celsius)
5, Double diffusion design, soft light and without dazzling
6, Special circuit design is non-interfering whereon disabled LEDs
7, Japan imported LGP, Light transmission rate>90%
8, Reinforced package play for sea, airport, express freight
9, CE & RoHS, FCC, CCC, ETL, PSE, C-tick certificate
10, Offer 4 years Quality Guarantee under warranty terms
11, Male-female connector is convenient to replacement of driver
Structure Characteristics:
1, Size: L1195*W395*T11MM
2, Material: Aviation aluminum Aluminum alloy-6063
3, Process: Anodized dielectric film, rustless forever
4, PCB: Pure Aluminum, L1185MM*W7MM*T1MM
5, Install type: Embedded system
6, Operating Temperature: -20° ~ 50°
7, Storage Temperature: -40° ~ 80°
8, Water proof: IP20
8, Diffusers: Diffuser plate+LGP+Reflective sheeting
Electrical Characteristics:
1, Rated Power: 72W
2, Replacement of CFL: 2*36W Philips+Ballast Power
3, Energy saving: 60%
4, Input Voltage: 100-240V
5, Frequency: 50-60 Hz
6, Power Factor: PF>0.95
7, Conversion Efficiency: 88%
8, THD: <18%
Optical Characteristics:
1, Light Source: 2835 SMD LED
2, LED Qty: 408PCS
2, Consumption: 72W ± 5%
3, Luminous Flux: 5400± 100Lm
4, Beam angle: 110 Degree
5, CRI: Ra>80
6, CCT: WW 2800-3200K, NW 4500-5000K, CW 6000-6500K
7, Life span: 50000 Hours(LM80)
LEDs Lumen Decrease:
1, Operation times(3000 House): 1%
2, Operation times(5000 House): 4%
3, Operation times(20000 House): 10%
4, Operation times(40000 House): 15%
5, Operation times(5000O House): 20%
LED Panel light advantage:
1, High lumen+high CRI+UL Isolated driver
2, High precise current source(± 2.5%)
3, Overvoltage protection
4, Short-circuit protection
5, Overload protection
6, Meet EU-EMC & LVD
7, Double insulated wire
8, spring type available for directly install on fireproof ceiling
9, no UV or IR emissions
10, No obvious chromatic aberration
11, Uniform light, No any shadow and darkness spot
12, Individual inner and outer packing
13, Light failure at 50000 Hours(LM80)
14: Recessed/surface mounted/suspended installation available
LED Factory advantages:
1, Annually invest third of our profit in our R&D department
2, Own Design, Die-Casting, Assembly, QC, International Sales Team
3, Absolute Service Dept for pre-sale service and after service
4, Production Capacity: LED panel light 20, 000PCS/Month
5, IS09001-2008 Management system
6, Full automatic aging testing line.
7, Constant temperature humidity chamber testing machine
8, Over 15 years listed company engineer sevice for Jorich
10, has been resolved bright edge, bright spot, black water ripple problem
Applications:
1, Hotels
2, Conference/Meeting rooms
3, Factories & Offices
4, Commercial Complexes
5, Residential/Institution Buildings
6, Schools, Colleges & Universities
7, Hospitals
8, Places where need energy saving and high color rendering index lighting
Remark:
1, Product life time defined as when the Flux (Lm) output from general light is 70%
Of the Flux (Lm) output from Initial light, then it is the end of the products life
2, In the same illumination (Lux), the 36W output power LED panel can instead of The traditional 3*18W fluorescent light, the 54W output power LED tube can instead of The traditional 3*36W fluorescent light
3, Cut off the current first and follow the steps to install the LED panel light
4, Tear up the prodctive film before replacement of the LED panel
7, The panel light must work under the right voltage according to the specification
8, Don't take the LED panel light apart
9, Recommend indoor use
Pakage:
|
Type |
Carton Size(cm) |
Carton |
Per Pcs(cm) |
Inner/Pcs |
NW/Pcs |
Pcs/Carton |
CMB/Carton |
|
L |
W |
H |
Weight Kg |
L |
W |
H |
Weight KG |
Weight KG |
|
1200*600mm |
130 |
72 |
27 |
45.8 |
128 |
69 |
5.5 |
10.7 |
9.8 |
4 |
0.234 |
|
1200*300mm |
130 |
41 |
27 |
23.5 |
128 |
38.5 |
5 |
5.1 |
4.2 |
4 |
0.1492 |
|
620*620mm |
72 |
72 |
27 |
23 |
69 |
69 |
5.5 |
5.2 |
4.5 |
4 |
0.139968 |
|
600*600mm |
72 |
72 |
27 |
21.5 |
69 |
69 |
5.5 |
4.8 |
4.2 |
4 |
0.139968 |
|
600*300mm |
71 |
40 |
27 |
12.5 |
69 |
37.5 |
5.5 |
2.8 |
2.4 |
4 |
0.071 |
|
300*300mm |
42 |
42 |
32 |
8 |
40.5 |
40.5 |
5.5 |
1.5 |
1.2 |
5 |
0.05292 |
|
900*300mm |
110 |
41 |
27 |
17.2 |
99 |
37.5 |
5.5 |
3.9 |
3.2 |
4 |
0.11275 |
|
R300*15mm |
42 |
42 |
30 |
6.5 |
40.5 |
40.5 |
5.5 |
1.2 |
0.9 |
5 |
0.05292 |
|
R240*15mm |
53 |
33 |
22 |
8.3 |
31 |
26.5 |
4 |
0.76 |
0.64 |
10 |
0.038478 |
|
R180*15mm |
41 |
26.5 |
23 |
5.5 |
24.5 |
19 |
3.5 |
0.48 |
0.38 |
10 |
0.0249895 |
Established in 2010, Located in world's LED center base--SHENZHEN, Jorich is a LED lighting company dedicated on research and development of sustainable solid state lighting products & solutions and become one of the professional manufacturer and exporter for indoor LED lighting.Favorable supplier in Europe, Australia and Japan market.
All Jorich designs are strictly comply with the UL, Energy Star and EU electrical safety standards and got CE and RoHS, SAA cert is pending.We owned 208 experienced workers with fully manufacturing skill and 10 QC members is strict to operate as QC process according to the ISO 9001-2008 quality system to ensure the quality of our product.
With wide experiences of electronic technology, structure technology, thermal management as well as optics design.Since its establishment, We are developing series of LED lighting to satisfy many customer's special and urgent inquiries.
Jorich cooperate with Sun Yat-sen University, Over two years close School-enterprise cooperation, enhance and strengthen our capacity in developing and design.Now, We are with Mould Tooling center, die-casting depart, all of LED lighting with patent in China.
The management team of Jorich lighting all with many years of LEDs experience, worked in listed companies, as technical leader and expert in LED industry for many years.
Jorich Lighting management has professional experience and acknowledge for the world's LED lighting development.With passion and professional talents, Jorich is eager to be the world famous sustainable lighting solution provider.
Absolute Service Dept for pre-sales service and after service.International sales team will weight advantage, practical, convenient, economical, serviceable in your favorable, soon feedback and honest cooperation.
