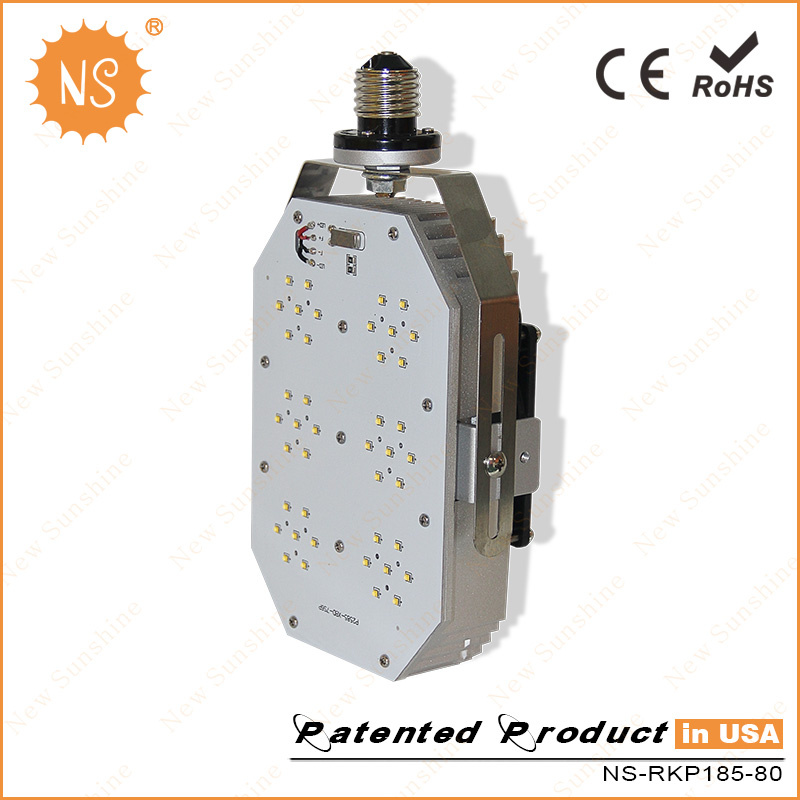

2015 Latest Design 80W LED Retrofit Kit

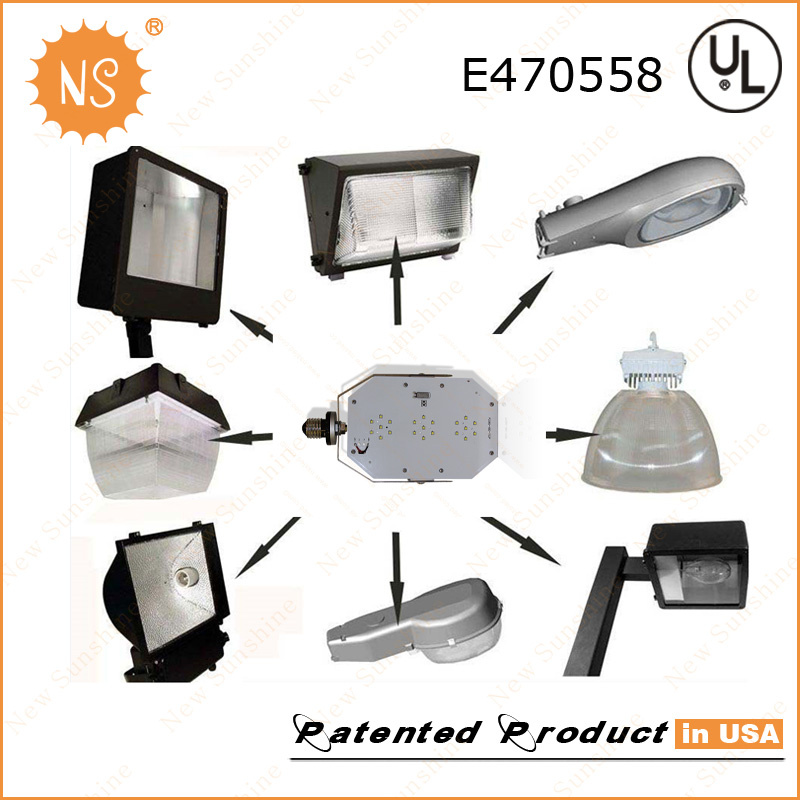

Design Light Consortium Approved for Rebates. This UL rated for top quality Retrofit Kit is ideal for replacing inefficient traditional lighting sources being used in street/parking lot light, wall packs, flood lights, high bays, low bays, parking garages, gas station canopies and much more. Constructed using highly rated CREE chipset and Meanwell driver.
Basic info.
Part Number: NS-RKP185-80W
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage:80 watts
Item Package: Quantity 2
Luminous Flux: 8000ALM CUL DLC
Patent Design: United States and European Union
Led Retrofit Kit Series Technical Parameters
| 40W | 60W | 80W | 100W | 120W | 150W | 185W | 240W | 60W | 100W | 150W |
| Item | NS-RKP185-40 | NS-RKP185-60 | NS-RKP185-80 | NS-RKP185-100 | NS-RKP185-120 | NS-RKP185-150 | NS-RKP185-185 | NS-RKP185-240 | NS-RKP185-60H | NS-RKP185-100H | NS-RKP185-150H |
| Base | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 | E26/E39 |
| Valtage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Lumen | 3600-4000LM | 5400-6000LM | 7200-8000LM | 9000-10000LM | 10800-12000LM | 13500-15000LM | 16650-18500LM | 21600-24000LM | 5400-6000LM | 9000-10000LM | 13500-15000LM |
| Size(in) | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* | 10.75*5.5* |
| 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in | 2.375in |
| Equivalent | 100W | 150W | 200W | 250W | 300W | 350W | 450W | 600W | 150W | 250W | 350W |
| HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS | HID/MH/HPS |
| CRI | >70 | >70 | >70 | >70 | >70 | >70 | >70 | >70 | >70 | >70 | >70 |
| Certificate | UL | UL | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
| Operating Tep | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) | (-40ºC~50ºC) |
Product Features:
1,Latest LED technology
LED chip : CREE XB-D LED.
Fan : SUNON LED fan 60000hours lifespan
2,Excellent Thermal Management
3,Temperature protection for light
4,One size,different wattages available;
5,Easy to install and connect;
6,Suitable for all the traditional light fixtures;
7.Temperature protection : can automatically dim down or switch off LED module is over heat detected and automatically switch on LED module when it cools down.
| Item Code | Power(W) | Volltage(V) | Number of LED | Lumens(Lm) | N*W/box(Kg) | G*W(Kg) | QTY/Carton | Size/Carton(inch) |
| NS-RKP185-40 | 40 | AC100-277 | 21 | 3600-4000 | 2.05 | 21.29 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-60 | 60 | AC100-277 | 28 | 5400-6000 | 2.06 | 21.37 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-80 | 80 | AC100-277 | 42 | 7200-8000 | 2.46 | 25.44 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-100 | 100 | AC100-277 | 49 | 9000-10000 | 2.64 | 27.28 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-120 | 120 | AC100-277 | 56 | 10800-12000 | 2.65 | 27.36 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-150 | 150 | AC100-277 | 70 | 13500-15000 | 2.69 | 27.67 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-185 | 185 | AC100-277 | 28 | 16650-18500 | 2.78 | 27.77 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-240 | 240 | AC100-277 | 35 | 21600-24000 | 2.83 | 29.21 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-60H | 60 | AC347-480 | 28 | 5400-6000 | 2.35 | 24.37 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-100H | 100 | AC347-480 | 49 | 9000-10000 | 2.75 | 28.42 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-150H | 150 | AC347-480 | 70 | 13500-15000 | 2.84 | 29.27 | 10 | 15.6*11.81*18.42 |
Applications:
High bay,Canopy, Shoe box, wall pack, street light etc
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings can be designed and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.
Trade Terms:
1. Payment: T/T ,Western union ,paypal
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
Notice:
1. Make Sure To Cut Off The Power Before Install 60W led retrofit kit shoe box lamp
2. Not suitable for dimmers or electronic switches or remote controls.
