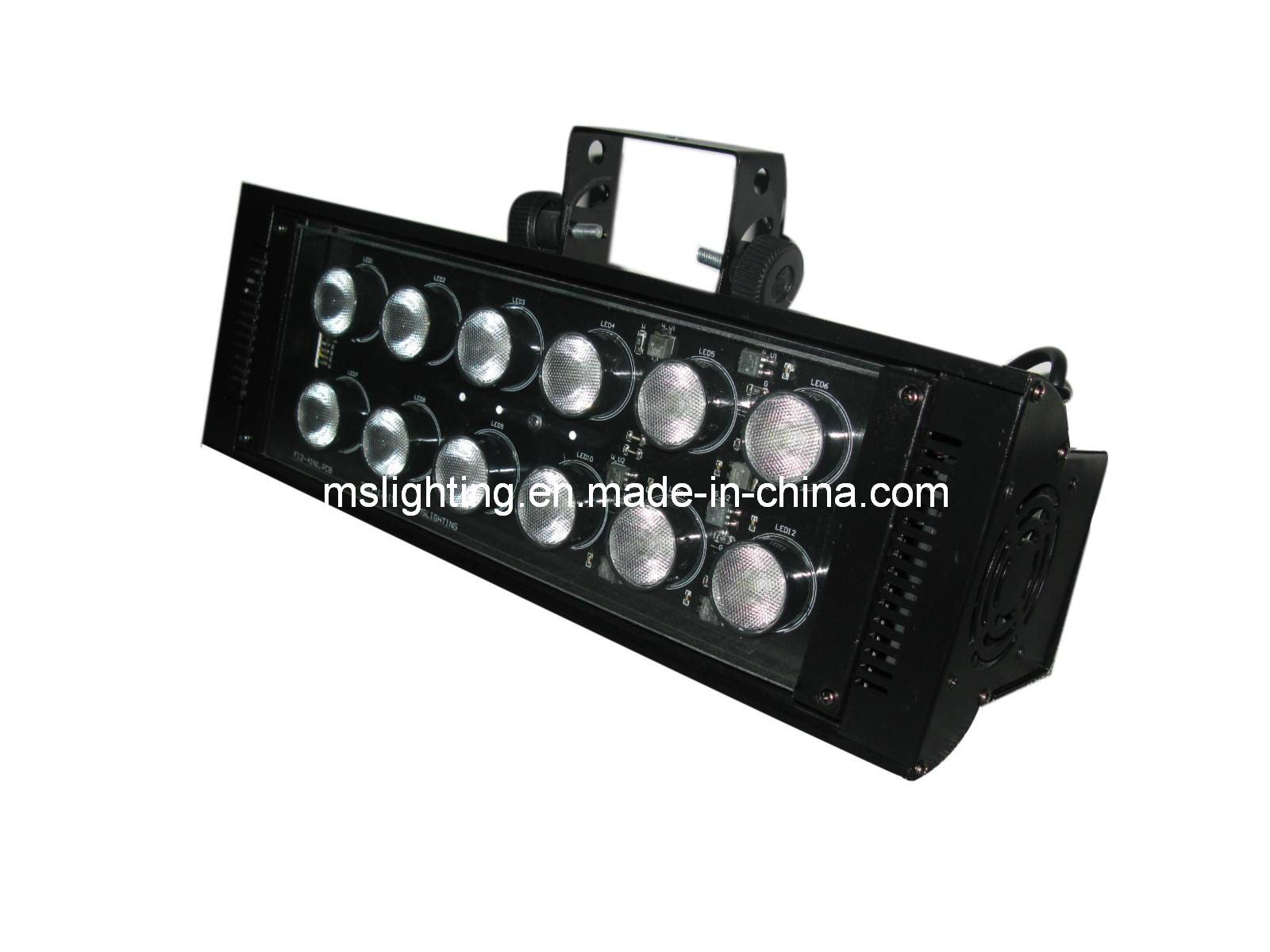

MODEL: LED 07H: 12*15W RGBWA 5IN1 Multi-Color LED Lamp
Control signal: DMX512
Power consumption: 250W
Otection rating: IP 65
1) Input voltage: AC 90-130V/280V-240V/50-60Hz, auto change
2) Power: 200W
3) DMX Channels: 8CH/5CH
Compatibility:
1. Color Range 16.7 million additive RGBWA Continuously variable intensity (256× 256× 256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: It is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, sound activity and Save function.
5.8channel Mode and 5channel Mode would change each other in every light
6. DMX Channels-8CH Mode:
CH 1 General Dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 AMBER (1-255, Dimmer, from dart to light)
CH 7 Strobe & Color change &color gradual change's open
CH 8 Strobe & Color change & color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. DMX Channels-5CH Mode:
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)
CH 5 AMBER (1-255, Dimmer, from dart to light)
|
Housing Material |
Aluminum |
|
Housing Color |
Black/White |
|
Aperture Cover |
Aluminum |
|
Operating voltage |
90-130V AC / 176-254V AC |
|
Output voltage |
DC 24-36V |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
Lamp Luminous Efficiency(lm/w): |
99% |
|
Certification: |
CE,EMC, LVD, RoHs |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
6-120degree to choose |
|
Power Consumption |
200W |
|
Light Projecting Distance |
5-200M |
|
IP Rating |
outdoor |
|
Operating Temperature |
-20ºC-+45 ºC |
|
Power In: |
Fixed |
|
CRI (Ra>): |
95 |
|
warranty: |
2 year |
|
Compatibility: |
|
8.Control modes |
0: Sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8. Adjusting color's gradual change manual |
|
9. Adjusting gradual change's speed. |
|
9. Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
|
|
|
Packaging & Delivery |
|
|
Packaging Detail: |
Standard Export packing by carton or OEM package |
|
Delivery Detail: |
2-5 days for sample , 5-12 days for mass quantity order |
|
Shipping |
By DHL, UPS, FedEx, EMS or TNT, boat ,Air. |
|
Guarantee |
we guarantee that all the product have been shipped after the testing , if there any damage caused in transit , we can not control the entire process , if so , we are happy to communicate with you friendly solution. |
|
Items have 2 YEAR warranty. ( Except lamp-house). |
|
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product |
