Home LED Light Products 11W-48W LED Panel, LED Panel Light, Excellent LED Panel

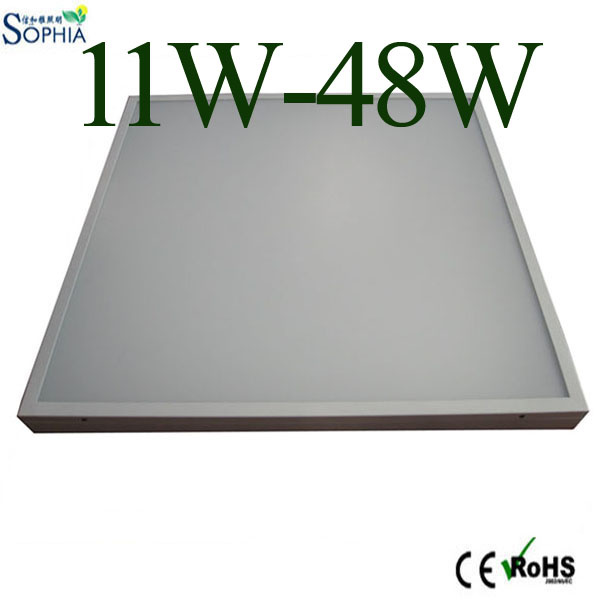

11W-48W LED Panel, LED Panel Light, Excellent LED Panel

11W-48W LED Panel, LED Panel Light, Excellent LED Panel
Price: US $ 38-40/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
48W very nice LED panel light, LED ceiling light.
Item No.: SY6060PL-48, SY6060PL-36, SY6060PL-18, SY6060PL-12;
Power consumption(W): 48W/36W/ 18W/12W;
Luminous flux (Lm): 3800Lm/3200Lm/1600Lm/1000Lm;
LED: High power SMD, Bridgelux or equivalent;
Power factor: > 0.92;
Input voltage (V): 100-240AC/24DC/12DC;
CRI(Ra): > 80;
Color temperature (K): 3000K 4000K 5000K 6000K;
Average beam angle (10%): 112deg;
Material:
High purity Aluminum frame, High light transmission and milk-white acrylic boards, excellent power supply, high power SMD LED distributed evenly on the back board;
Working temperature (C): -40~50C;
IP rating: IP40;
LED life span (H): 50000H;
Dimension(mm): 595*595*48mm, 295*295*48mmmm; 295*1195*48mm, 295*595*48mm;
G. W.: (kg): 3kg/PC;
Packing (PCS/carton): 2PCS/Carton;
Application:
General lighting, decorative lighting, supplementary lighting for office, show center, malls, stores, hospitals, banks and other public lightings.
Option 1: Dimmable panel
Item No. SY6060PL-12 SY6060PL-18 SY6060PL-36 SY6060PL-36 SY6060PL-48
Power (W) 12W 18W 36W 36W 48W
Lumen (Lm) 1000Lm 1600Lm 3200Lm 3200Lm 3800Lm
LED type High power SMD
Power factor ≥0.90
Input voltage (V) 80-265VAC
CRI(Ra) ≥80
Color temperature 3000K 4000K 6000K
Average beam angle 160°
Material Aluminum frame, backboard. High light transmission and milk-white PMMA.
Working temperature -20~+40C
IP rating IP20
LED life span (H) 50000H
Dimension(mm) 298*298*48 298*598*48 598*598*48 298*1198*48 598*598*48
G.W.:(kg)/Carton 2.55 3.65 6.45 6.55 6.45
Packing(pcs/carton) 2 2 2 2 2
Carton Size (cm) 36*15*36cm 66*15*36cm 66*15*66cm 126*15*36cm 66*15*66cm
Application General lighting, decorative lighting, supplementary lighting for office, show center, malls, stores, hospitals, banks and other public lightings.
Prod Model: SY6060PL-48/-36/-18/-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 48W, 36W, 50W, 55W
LED: High Power SMD, Bridgelux or Equivalent
Power Factor: 0.92 or More
CRI: 80 or More
Cct: 3000k, 4000k, 5000k, 6000k
Working Temperature: -40~50c
IP Rating: IP20
Warranty: Three Years
Delivery Time: 7-10 Days
Size: 595*595mm
Light Source: LED
Appearance: Square
Type: Embedded
Emitting Color: White
Certification: CCC
Dimmable: With Dimmable
Housing Material: Aluminum
Base Material: Aluminum
Voltage: 100-240AC/24DC/12DC
Beam Angle: 112
Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.

The main advantages of SOPHIA LED lightings and transformers are stable quality, delicate workmanship, high-efficient, long-lifespan. The most fortune of Sophia is our skilled and loyal workers, they concentrates on workmanship and quality, these ensures we can do like we promise. Sophia Lighting runs strictly according to ISO9001: 2008 quality control system. Most of lightings were designed by our experienced R&D team, many of these veterans have 10-15 years experience in lighting and Power supply. SOPHIA has made various toolings for LED Headlight, LED Emergency light, LED Pool light, LED Search light and transformers. For all raw materials, from LED chip, power supply, copper wire to screw, box, we inspect carefully and insist use brand one, quality one. From soldering to wire, we try to improve our workmanship. Safety and durability are our most import principle. All products go through strict quality controlling procedures and aging test process to make sure all the lamps with stable quality and good performance.

With advanced management, professional team, unique design, excellent quality, reasonable price, rapid delivery and all-around services, SOPHIA products have been well-accepted all over the world, especially very popular in Europe, America and Asia markets.

Adhering "good reputation, customer is supreme, long time partners" business principle, with the idea of "Honesty, Quality, Innovation, Efficiency" to serve customers all over the world. We will keep on developing new products, improving quality and service, to make more contributions in low carbon age.
