Home LED Light Products 10W Integrated Sensor Garden/Street LED Light with Outdoor Lamp

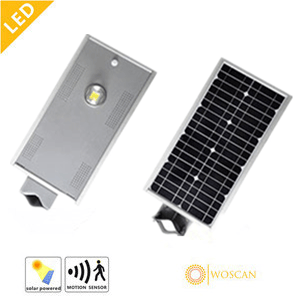

10W Integrated Sensor Garden/Street LED Light with Outdoor Lamp

10W Integrated Sensor Garden/Street LED Light with Outdoor Lamp
Price: US $ 60-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Descripition:
Our integrated solar street light integrates the green-energy part solar panel, LED lamp and the rechargeable battery, so as to get the solution to low-energy, long-time, high-luminance and free maintenance. The integrated solar street light can be used for the garden, residential area, courtyard, road, mine area, parking area, or roads wherever needed.
The solar panel is to recharge the built-in battery which provide the energy for lighting

Feature:
-All in one design, without any cable, install easily, can use many poles, such as iron pole, wood pole, bamboo pole,plastic pole and so on, with low cost;
-Charge by solar energy through solar panel built on the light.
-Using high capacity and long lifespan polymer gel battery, can resist high temperature and ensure the long lifespan of the whole product;
-Waterproof,very safe and reliable;
-Using aluminum alloy as the main material of the body, rustproof and corrosion-proof
-Lighting hour:36-48hours, can work for continuous 3 or 5 rainy days when charged fully.

Working principle
With infrared human body sensor: when someone or the car (moving object) enters within 10-12 meters from the light, the led light will work by full power.   90 seconds later, the light will return to the power-saving model, which means the light will work by one third of the full power.

Specifications:
Light    Source10W
PV Power25W
Battery9000mAh-LiFeo4
Human Body Sensingyes
Overload Protectionyes
Dimension650x325x43mm
Net Weight/Gross    Weight9.7kg/10.05kg
LuminousFluxAll    Bright900lm
Energy Saving300lm
Viewing Angle120°
Color Temperature3000-3500k/6000-6500k
Light Perception    Threshold25lx
Working TimeBright mode≥9 hrs
Dim mode≥24 hrs
All series lists, 50W 60W can produce,but need to customize.

Technical Parameters

ModelWS-SL-05WS-SL-08WS-SL-10WS-SL-12WS-SL-15WS-SL-20AWS-SL-20BWS-SL-25
Basis Parameters
Light Source5W LED8W LED10W LED12W LED15W LED20W LED20W LED25W LED
Solar PV Power10W(Mono)18W(Mono)25W(Mono)30W(Mono)37W(Mono)50W(Mono)50W(Mono)50W(Mono)
BatteryType(Inbuilt)Lithium Iron Phosphate(Inbuilt)Lithium Iron Phosphate(Inbuilt)Lithium Iron Phosphate(Inbuilt)Lithium Iron Phosphate(Inbuilt)Lithium Iron Phosphate(Inbuilt)Lithium Iron Phosphate(Inbuilt)Gel(Inbuilt)Gel
Capacity12.8v 4Ah12.8v 6Ah12.8v 9Ah12.8v 12Ah12.8v 15Ah12.8v 18Ah12v 21Ah12v 28Ah
Utility Supplement InterfaceYes(DC 18V)
Power RegulationInfrared Sensors and Program Setup
Circuit ProtectionOvercharge Protection/Discharge Protection/Over-current Protection
Dimension750X214X43mm950X214X43mm650X325X43mm780X325X43mm920X325X43mm1150X325X43mm
Net Weight  /  Gross Weight6.9kg/7.96kg8.2kg/9.4kg9.7kg/10.5kg10.5kg/11.8kg13.2kg/14.6kg17.5kg/19.5kg25.8kg/27.5kg18.5kg/19.8kg
Luminous Efficiency
Luminous FluxAll Bright450 lm720 lm900 lm1080 lm1350 lm1800 lm1800 lm2250 lm
Energy Saving150 lm240 lm300lm360 lm450 lm600 lm600 lm750 lm
Viewing Angle120º
ColorTemperature3000K-3500K/6000K-6500K
Charging Time







Working time (Full Power)All Bright≥8 hour≥8 hour≥9 hour≥12 hour≥12 hour≥10 hour≥10 hour≥10 hour
Energy Saving≥20 hour≥20 hour≥20 hour≥20 hour≥20 hour≥20 hour≥20 hour≥20 hour
Ambient Temperature
Operating TemperatureCharging0ºC~60ºC
Discharging-20ºC~60ºC
Storage Temperature0ºC~45ºC
Protection GradeIP 54
Installation Structure
Installation Height3m~4m3m~4m3m~4m3m~4m3m~4m3m~5m3m~5m3m~5m
Installation Diameter70mm-90mm
Clearance of Installation6m~8m8m~10m8m~12m10m~15m10m~15m10m~15m10m~15m10m~15m

Environmental Temperature
-Work temperature: Charge: 0°C--+60°C;  Discharge: -20°C--+60°C   Storage: 0°C--+45°C

Installation:
-Pole install height: 3--5m
-Space between 2 lights:10--20m
-Suitable for light pole diameter: 45-70mm




Precautions for use:
-The charging temperature is between 0°C~60°C; discharge temperature at night is between -20°C~60°C. Any ambient beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for above while selecting the street light.
-"All in One solar street light" can not work without sunshine charging, please select the suitable product model according to the local sunshine radiation and the annual total radiation.
-At the same time, please keep it away from any shadow of house, trees etc.
-Keep clearing the surface of the light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
-Battery of the "All in One solar street light" can be stored for 6 months long after full charged. Please examine, charge it periodically after long time transportation in case of damage.
-While installed in Northern Hemisphere, please make sure the surface of the solar panel faces the South to collect maximum sunshine radiation;
While installed in Southern Hemisphere, please make sure the surface of the solar panel to be facing the North to collect maximum sunshine radiation.

Package;
-1X Integrated Solar Light
-1Xset of Mounting fittings


Application;
Street Lighting System, Solar Security Light, Main Road,
Garden, Freeway, Campus, Avenue,
Pedestrian Street, Sidewalk, Jogging and Bike Path,
Military Bases, Path, Residential area
Parking Lot, Driving way, Pedestrian,
Remote Area, Airport, Boat Dock



Prod Model: WS-SL-10w01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Versions: .PIR / Motion Sensor/ Timing
Solar Panel Szie: 370*225mm
Solar Panel: Max 18V 15W(Monocrystal Si), Lifespan 20years
Battery: 12.8V 6ah
PF: >0.97
Total Harmonic Distortion: <8%
Poroduct Size: 470*325*76mm
N.W.: 4.5kg
Carton Size: L570*W410*H550m
20' Container: 180 Cartons
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Technics: Hollow-carved
Illumination Time: 8h
Usage: Courtyard
IP Rating: IP65
Certification: IP65
Voltage: 12/24V
With Light Source: With Light Source
Light Source: 10PCS SMD LEDs
Color Temperature: 6000-6500k
Power: 10W- 1100lm
Cell Type: Phosphoric Acid Iron Battery, 5-Years Warranty
Charging Time (',H): 7hrs
We are one of the leading factories which develops and produces Intelligent LED work light for car and truck in China, Myeco has a R&D headquarter in Shenzhen high-tech research center, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.

We offer our customers innovative and high quality components and products, including OEM, at competitive prices and with an excellent service in order to achieve total customer satisfaction. In addition, we provide professional advice according to the requirement of clients for different environments, including Car parking garages, Warehouse, Manufacturing, Food Processing and Cold Storage and so on. Our products are exported to customers in twenty-five countries in North America, the European Union, Australia, and Asia.

At Woscan, we neither stop nor ever hesitate in pursuing our superior quality.

We firmly believe in providing our customers with innovative, superior quality products that are competitively priced and always timely delivered. We guarantee 99% customer satisfaction. Based on the confidence in our quality, Myeco provides Lighting products with 4-year warranty than most competitors. Based on the professionalism in manufacturing.

Woscan is in the stage of fast development. With current annual growth of 40% of the total sales volume, Myeco provides customer with best products and service. We carry the mission of improvement of human civilization. With Myeco ' S win-win strategy, we enjoy the perspective and fabulous future together with you.

We would like to develop new partnership for the distributional agents from all over the world. Let"s start our cooperative partnership now!

To learn more about how your company can benefit from our knowledge and production strength, please contact us.
