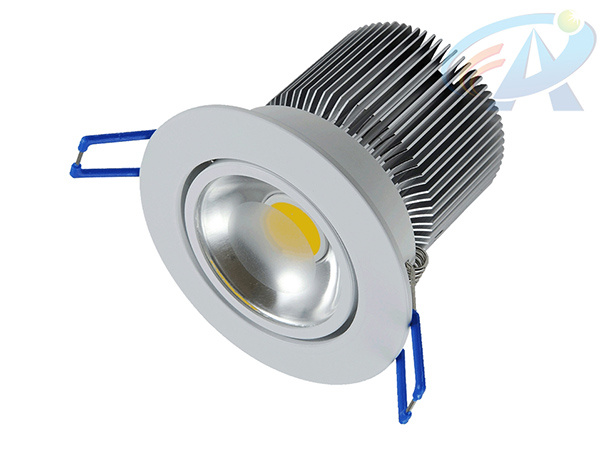

Item Name: 10W Anti-glare COB LED Down Light
Item No.: AL-DL10B-COB01L-D85
Brand Name: AUXOLED
>> Specific Parameters:
Overall Dimensions: Φ85*H75 (mm)
Cutout Dimensions: 70-72 (mm)
Light Source: 10W COB LED
Chip Brand: Epistar
Beam Angle: 120°
CRI: >70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 10W
Driver Type: External Constant Current LED Driver
PF: >0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Warm White), 7000-9000K (Cold White)
Luminous Flux: 850LM
Main Material: Aluminum + Glass
Heat Sink Solution: 1070 Aluminum Radiator
Working Temperature: -20ºC~45ºC
Working Lifespan: 50,000 Hrs
>> Detailed Chart:
Input Voltage | CCT | Beam Angle | CRI | Luminous Flux |
| AC85-265V | 2500-9000K | 120° | >70 | 90-100LM/W |
| Item No. | Product Dimensions | Cutout Dimensions | Power Consumption | Light Source |
| AL-DL05B-COB01L-D85 | Φ85*H45 (mm) / 2.5inch | Φ72 (mm) | 5W | 5W COB LED |
| AL-DL07B-COB01L-D85 | Φ85*H56 (mm) / 2.5inch | Φ72 (mm) | 7W | 7W COB LED |
| AL-DL10B-COB01L-D85 | Φ85*H78 (mm) / 2.5inch | Φ72 (mm) | 10W | 10W COB LED |
| AL-DL12B-COB01L-D110 | Φ110*H76 (mm) / 3.5inch | Φ95 (mm) | 12W | 12W COB LED |
| AL-DL15B-COB01L-D110 | Φ110*H86 (mm) / 3.5inch | Φ95 (mm) | 15W | 15W COB LED |
| AL-DL18B-COB01L-D142 | Φ142*H125 (mm) / 5inch | Φ110 (mm) | 18W | 18W COB LED |
| AL-DL20B-COB01L-D160 | Φ160*H118 (mm) / 5inch | Φ140 (mm) | 20W | 20W COB LED |
>> Advantages:
Use Imported Epistar Chip LED, Excellent Quality, Super Long Working Lifespan
Use 1070 Aluminum Radiator, Gorgeous Heat Sink Effect
Compatible with Dimming LED Driver and Dimmer, Can Achieve Dimmable Function
Available Colors of Glass Cover: Frosted White and Clear; Uniform & Tender Light, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power: 10W, 12W, 15W, 18W, 20W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
>> Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
>> Certificates:
CE, RoHS, C-tick, SAA
>> Warranty:
2 Years
