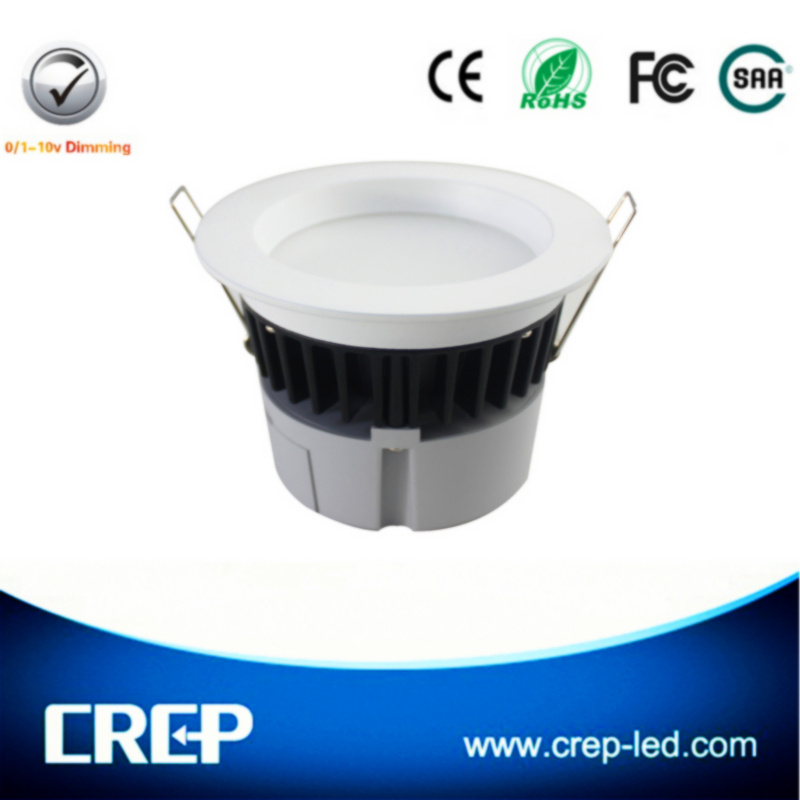

CE RoHS FCC SAA approved high lumen efficiency 10w/12w smd2835 backlight led down light with 0/1-10v dimming avaiable
Technical Date:
| Item No. | CPS-Y3A10-D9 | CPS-Y3A12-D9 |
| Power | 10w | 12w |
| Luminous Flux | 800Lm±8% | 950Lm±8% |
| Voltage | AC100-240V 50/60Hz(non-dim), AC220-240V 50Hz(0-1/10v dimming) |
| Color Rendering(Ra) | ≥82 |
| Beam Angle | 90°±10° |
| Color Temperature | 2700-6500k |
| Material | ADC12+PC |
| Hole size(cut out) | Φ100mm |
| Size | Φ110*74mm |
Enviromental features:
| Material | ADC12 + PC |
| Working Temperature | -20~+45ºC |
| Working Humidity | 0~90%RH |
| Storage Temperature | -20~+50ºC |
| Storage Humidity | 0~80%RH |
| Usage Lifespan | >40000H |
| Warranty | 3 years |
Advantages of led down light:
1.LED down light uses high quality Lathe aluminum alloy as main-body material.
2.LED down light uses high light transmittance toughened glass as cover material.
3.Unique and beautiful appearance design.
4.Good heat dissipation performance to guarantee the led downlight's long lifespan.
5.Unibody design with main-body and adapter.
6.Use 0/1~10V Dimmable LED driver, can adjust 0~100% dimming effection.
7.Use high power SMD2835 led light souces, more brightness&energy saving.
8.CE ROHS FCC SAA certification approved. 3 Years warranty.
Packaging& Delivery:
Packaging Details: Standard packing
| Inner Box: | 120*90*125mm |
| Carton: | 475*380*400mm (45pcs/ctn) |
| Warranty: | 3 years |
| Certificates: | CE ROHS FCC SAA |
Delivery Details: 15-20 working days
Application of LED down lights:
Widely used in Commercial and Residential places. For example, Offices, Hotels, conference rooms, corridors, restaurants, shopping malls, supermarkets, flagship stores, showrooms, night clubs, factories, and other commercial, residential and public facilities.
Notice:
1. Indoor use only, non-waterproof.
2. Input voltage: AC100-240V
3. Working temperature: -30- 50 degree.
4. Working humidity: 10%-95%
5. Turn off the main power supply before installation.
6. Directly replace the traditional downlight in appropriate perforate dimension.
7. Do not touch the LED power supply when power on.
8. Do not take the LED downlight and driver apart without permission.
Our service:
1. After sale service
CREP takes the principle of "Customer First, Service Superior" to satisfy our customers in after-sale services. According to different types of our products,we promise to offer 3 years warranty period (except special agreement), in which we provide either free or paid guarantee repairs, detailed items as followed.
If our products have some existence quality problems within 3 months since the date of purchasing, customer can change new product or free components to replace.
2. Warranty period after the 4th month of purchasing date.
Within 24 months, if the LED light power occurs some abnormal issues to make our products can not work normally, we will offer free new power to renew and repair. Changing method can be consulted and determined by particular cases.
Within 36 months, if the LED light occur serious fades or can not work, freely offered newly light source to renew and repair by us. Changing method can be consulted and determined by particular cases.
Note: LED depreciation ratio and other parameters related evaluation should consider the working conditions of LED light and working time calculated within 12 hours per day under a usual working environment.
