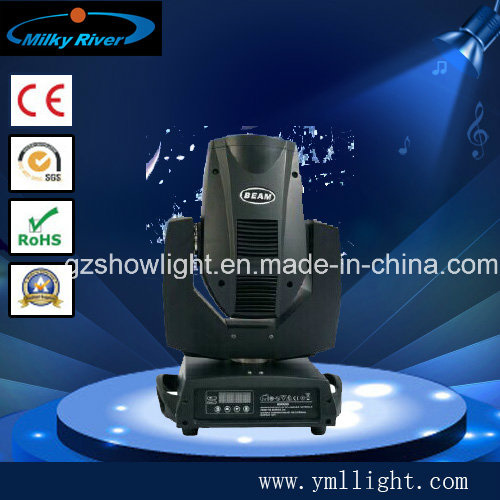

10r 280W Spot Beam Moving Head Light
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
280W Beam Moving Head Light Technical ParameterPower supply:AC110-240, 50/60HzLamp: OSRAM HRI280W Color Temperature:8000K Average lamp life:2000H Color: 17 color + blank color wheelGobo: 17 fixed gobo +9 Rotation goboPrism: rotation 3-face prismLens: high precision optical lensWash effect: adjustable wash effects angleFocus: linear adjustmentDimmer:0-100% linear adjustment Pan/Tilt: X axis 540°Y axis 250°automatically accurate positioning Beam angle: parallel beam angel 3.8°-45° Strobe: Double lens strobe(0.5-9 times/ second) Control mode: Standard DMX512, Automatic and Master/slave mode Channel: 16/17/25 CHs Controller can open the lamp and reset, including delaying function Weight: 18.5KG
|
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| 16CH |
Color | Strobe | Dimmer | Static Gobo | Prism | Gobo/Prism Roation | Gobo Rotation |
Zoom | Focus | Pan | Pan Fine | Tiit | Tilt Fine | Pan/Tilt Speed | built-in Effect | Reset or turn on/off lamp |
|
| 17CH | Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt Speed | Empty | Dimmer | Strobe | Color | Gobo Rotation | Gobo/prism rotation | Static gobo | Iris | Prism | Focus | zoom | Reset or turn on/off lamp |
25CH
| Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt Speed | Empty | Dimmer | Strobe | Color | color model | Gobo Rotation | Gobo Model | gobo/prism rotation | index pan fine | Gobo shake | static gobo | Static gobo shake |
| 18 | 19 | 20 | 21 | 22 | 23 | 24 |
|
|
|
|
|
|
|
|
|
|
| Iris | built-in Effect | prism lamp | focus | focus fine | zoom | Reset or turn on/off |
|
|
|
|
|
|
Payment:
30% down payment to confirm order, the balance should be pay before dispatch.
Sample testing
Can by DHL, UPS express for tesing
Product guarantee
1 year guarantee
Service
Our professional staff offer 24 hours on line technology and other sevvice, if urgent, please call 0086 18126857039
| Prod Model: |
YML-M10R280 |
| Markets: |
North America,South America,Mid East,Western Europe |
| Electromagnetic Ballast: |
Electronic Ballast |
| Osram Hri280: |
Beam Angle: 3.8-45 Degree |
| Color Temperature: 8000k: |
Gobo: 17 Color+Blank Color Wheel |
| Prism: Rotation 3 Face Prism: |
High Precision Optical Lens |
| Pzcking Dimension: 523X337X570cm: |
Net Gross Weight: 18.50kg |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Osram Hri 280W |
| Material: |
Fireproof ABS Material |
| Emitting Color: |
17 Fixed Gobo +9 Rotation Gobo |
| Control Channel: |
16/17/25CH |
| Strobe: |
Double Lens Strobe |
| Control Mode: |
DMX512, Automatic and Master, Slave Mode, |
| Voltage: |
AC110-240V |

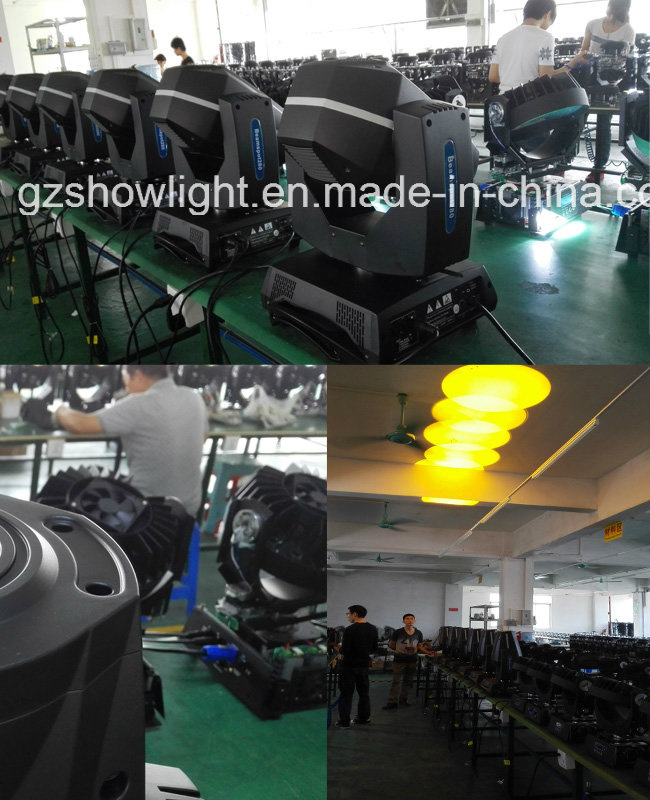

Guangzhou Show Light Stage Equipment Co., Ltd formed from a lighting factory with 21 years experience, which research and developed the professional stage lighting control, for recent years, develop the LED moving head, profile light, spot light, etc. Our main products are including moving head, LED lighting, stage effect, follow spot light, controller. Widely used in all kinds of performances, theater, TV studio, multi-functional meeting rooms, church, musical hall, parks, etc.
For so many years, we devote to technology innovation, we independently researched and developed IGBT sine wave dimmer in 2005. In 2009, we started to research stage LED lightings in order to solve the LED lighting dimmer curve low end flashing problem. In 2012, we launched 7 mixed color LED stage lighting and have patent on this. We adopt the second light distribution technology on LED lightings.
We have already won appreciation and good comments from the experts and domestic and overseas clients. We will continually make our efforts on this lighting field.
Guangzhou Show Light Stage Equipment Co., Ltd welcome you to join us to grow up together!
