Home LED Light Products 100W UL IP65 COB LED Industrial High Bay Light

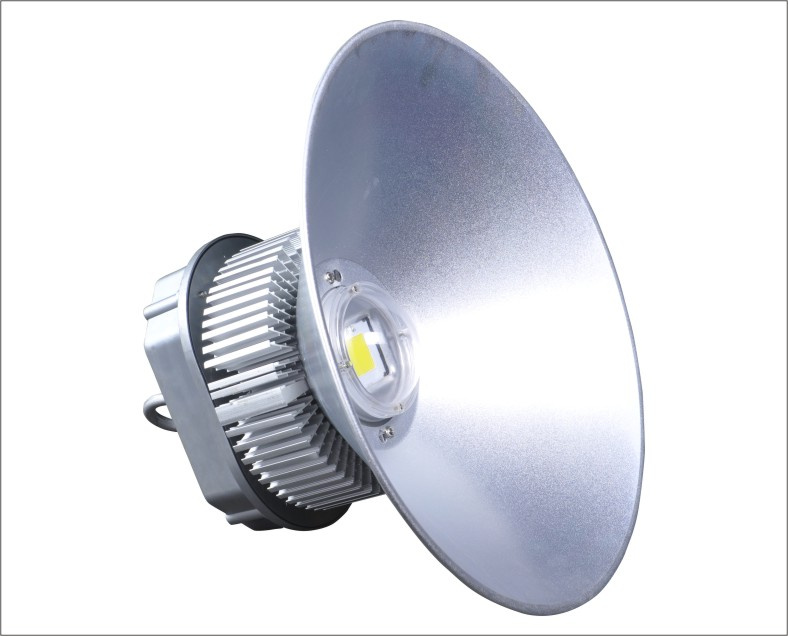

100W UL IP65 COB LED Industrial High Bay Light

100W UL IP65 COB LED Industrial High Bay Light
Price: US $ 1-200/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union

Model SV-LMD100W
Electrical characteristics                                        Photometrics & Chromaticity

LED Qty                  1pcs. ECSE50 COB                   Luminous Flux      14200.0 lm
LED Current                  2100mA                               CCT            5000K-6400K±300K
Input Voltage&Hz             AC90-277V, 50-60Hz        CRI                   ≥70
Input Current       ≤1.30A @110V | 0.481A @220V    Light distribution structure   60°90°120°135°
Power                    100W±10%                                   Field Angle         H121.7 V127.2.
Power Factor                  ≥0.9                                     Lumen Maintenance     >50,000hours
Total harmonic distortion(THD)  ≤20

Environmental characteristics                                Lamp specifications
Protection grade        IP65                                          Overall Dimensions    425mm x265mm x 495mm
Working temperature                  -40°C to +55°C        Net weight             5.1 kg
Working humidity                  10-95%RH                     installation mode       ceiling mounted
Storage temperature                  -40°C to +70°C
Storage Humidity           10-95%RH                            installation accessories 10KV  lightning protection devices (optional)


led high bay100W150W200W250W
Luminous Flux>12000lm (Typ.) >18000lm (Typ.)>18000lm (Typ.)>35000lm (Typ.)
CCT5000/6400K±300K5000K±300K/5000K±300K/5000K±300K/
Power Factor≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)
Input Voltage&HzAC90-277V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60Hz
Working temperature-40°C to +55°C-40°C to +55°C-40°C to +55°C-40°C to +55°C



Product Characteristics:
1. Aluminum alloy lamp body, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;

2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;

3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of lamp;

4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;

5. Dustproof PC mask, high transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;

6. High bay light has four different shades, 60°90°120°135°are optional, optional independent lighting protection device;

7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of high bay light;

8. Through the security certification and environmental certification standards, 5 years of product quality assurance;



3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.




Prod Model: SV-LMD100W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Current: 2100mA
Working Temperature: -40°c to +55°
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: UL
Color Temperature: 5000k-6400k±300k
Color: Silver
Usage: Large-Scale Factory Building, Warehouse, Logistic
Beam Angle: 60°90°120°135°
LED Chips: COB
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.

The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.

You are welcome to contact us for more information.

Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
