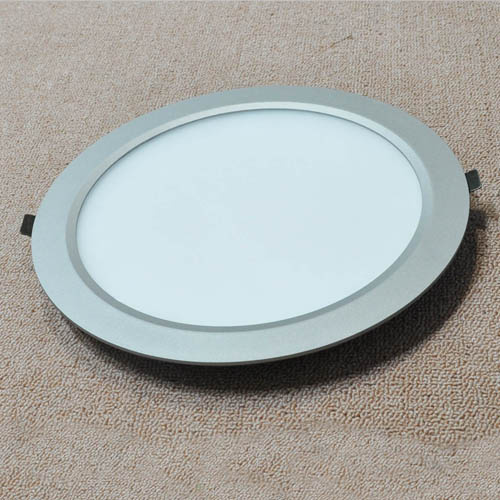

LED Panel light is a new light source, it adopt ultra-thin aluminum frame and super bright leds, the light source is from two side of aluminum frame, adopt constant volage driver, stable, and quick on/off, no flash. the light beam angle is wide, and light is very soft, it is well applied to indoor lighting, it can replace the traditional ceiling light.
Product feature:
-Material: Aluminal alloy shell, high effeciency light guide, super brigt SMD3014.
-Size: ø278*14.5mm
-Color: Warm white( 2700-3500K), Day light( 4000-5000K), Cool White(5500-6500K)
-Input Voltage: AC100-240V
-Working temperature: -20~50degree
-Working Life: over 50000hours
-Easy installation, suspending way, mounting way.
-IP44, Indoor lighting.
Product advantage:
Energy-saving,high brightness, no infrared rays,no ultraviolet radiation ,no thermal effect;
Wider light emitting dimension
New inner high efficiency(95%) constant current driver,with heat protection system,can work under unstable voltage;
Instant start, no flickering, no humming;
Special circuit design, avoiding the single broken LED influence problem;
No TF interference.
With dimmable function
Application:
Widely used in School , office, meeting room, restanrant, shop and so on.
|
Part No. |
LF-PR08W |
LF-PR10W |
LF-PR15W |
LF-PR18W |
|
Product Size |
ø180*14.5mm |
ø245*14.5mm |
ø278*14.5mm |
ø296*14.5mm |
|
Cutout size |
ø170 |
ø225 |
ø265 |
ø296 |
|
Light source |
60pcs SMD3014 |
88pcs SMD3014 |
110pcs SMD3014 |
132pcs SMD3014 |
|
Power |
8W |
10W |
15W |
18W |
|
Input voltage |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
|
Color |
W/WW/R/G/B |
W/WW/R/G/B |
W/WW/R/G/B |
W/WW/R/G/B |
|
Lumens |
700±50LM |
800±50LM |
1200±50LM |
15500±50LM |
|
IP rank |
IP54 |
IP54 |
IP54 |
IP54 |
|
Dimmerable |
Available |
LUMIFIT LED TECHNOLOGY Co., Ltd, specialize in manufacturing and exportation of LED lights, main products are including LED strips, LED modules, LED tubes, LED spotlights, LED bulbs, LED down lights, LED PAR lights, LED flood light, LED industrial lights and LED accessories. All our products are made under the ISO9001: 2000 and according with CE and RoHS.
LUMIFIT have a well trained sales team and provide good pre-sales and after- sales service. Here you will be easy to get what you want. Because of our durable performance and reasonable price which bring us more and more customers. Now our products are well sold in Europe and America area, such as Holland, Italy, UK, Spain, Germany, USA, Mexico, Peru, Argentina, Brazil and so on.
